Item# STUDIO 180
At A Glance:
25 – 360 watts suggested amplifier power range
Ribbed PolyPlas low-frequency cone
Midrange driver housed in sub-enclosure
Patented CMMD Lite 1" (25mm) tweeter
Proprietary Bi-Radial waveguide
Magnetically shielded for video proximity
Distinctive JBL Weave design
What's in the box:

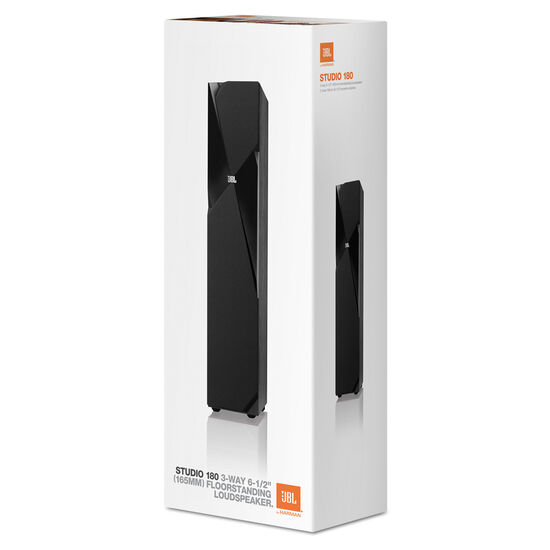

1 Studio 180 floorstanding loudspeaker
- 25 – 360 watts suggested amplifier power range
- JBL engineers designed the Studio 180 floorstanding loudspeaker to deliver enhanced, room-filling sound from a compatible AVR (audio/video receiver) or 25- to 360-watt power amplifier, whether you are using the Studio 180 as a stand-alone unit or as part of a surround-sound system.
- Ribbed PolyPlas low-frequency cone
- The ribbed construction of the 6-1/2-inch (165-millimeter) PolyPlas™ cone improves the Studio 180’s strength while reducing its low-frequency distortion. A lightweight alloy allows for precise movement, ensuring that bass instruments always sound powerful but never “boomy.”
- Midrange driver housed in sub-enclosure
- Ideally, sounds should blend together within your ears, not interact with one another before they reach you. To prevent sound interference from the upper and lower frequencies, the JBL Studio 180 floorstanding loudspeaker’s 4-inch (100-millimeter) PolyPlas™ midrange driver features a separate sub-enclosure. And that’s not all – a lightweight alloy such as the PolyPlas material allow for precise cone movement to maximize sound clarity, especially on voices.
- Patented CMMD Lite 1" (25mm) tweeter
- The CMMD® high-frequency tweeter starts as an aluminum dome that is sandwiched on either side with ceramic. The result is strong enough to hold its shape when moving rapidly yet light enough to eliminate unwanted resonances. What your ears notice, however, is subtle, clear detail and lasting, unsullied sound performance.
- Proprietary Bi-Radial waveguide
- The Studio 180’s Bi-Radial® waveguide disperses high frequencies widely without loss of quality or accuracy. The result is precise, 360-degree imaging, sharp and rich high-definition (HD) sound and a wide listening position that makes every seat in the room the one to fight for.
- Magnetically shielded for video proximity
- Loudspeakers use magnets. Your TV hates magnets. But that doesn’t mean that you have to listen to movies on your television set’s often inadequate loudspeaker. Nor do you have to compromise your HDTV’s high-definition capabilities. We’ve designed the Studio 180 floorstanding loudspeakers to form an integral part of any home theater experience. We’ve optimized them for inspired performance while making them magnetically shielded to prevent any interference with video sources.
- Distinctive JBL Weave design
- The JBL Weave design is a perfect convergence of form and function. Whether you need your JBL Studio 180 loudspeakers blend in or stand out, we’ve designed them to look sharp and stylish in any room.
Floorstanding SpeakerFloorstanding design delivers big theater sound provides a true home entertainment experience.
Magnetically ShieldedMagnetically shielded for placement wherever you want it, including right next to your TV or video display.
Sleek, Stylish DesignHigh-gloss finish that compliments any room in your home.
Manuals & Downloads:
- Three-way floorstanding
- Wall-Mount Capable
- Studio 1 Series
- Nominal Impedance
- 8 ohms
- Frequency Response
- (-3dB) 45Hz – 22kHz
- Power Handling (Peak)
- 360 watts
- Power Handling (Recommended)
- 90 watts
- Crossover Frequencies
- 800Hz, 3.2kHz, 6dB/octave
- Maximum Recommended Amplifier Power
- (2.83V@1m) 89dB
- Midrange Transducer
- 4" (100mm) PolyPlas cone, magnetically shielded
- Low-Frequency Transducer
- 6-1/2" (165mm) PolyPlas cone, magnetically shielded
- High-Frequncy Transducer
- 1" CMMD Lite dome, magnetically shielded, in a Bi-Radial constant directivity waveguide
