Harman/Kardon

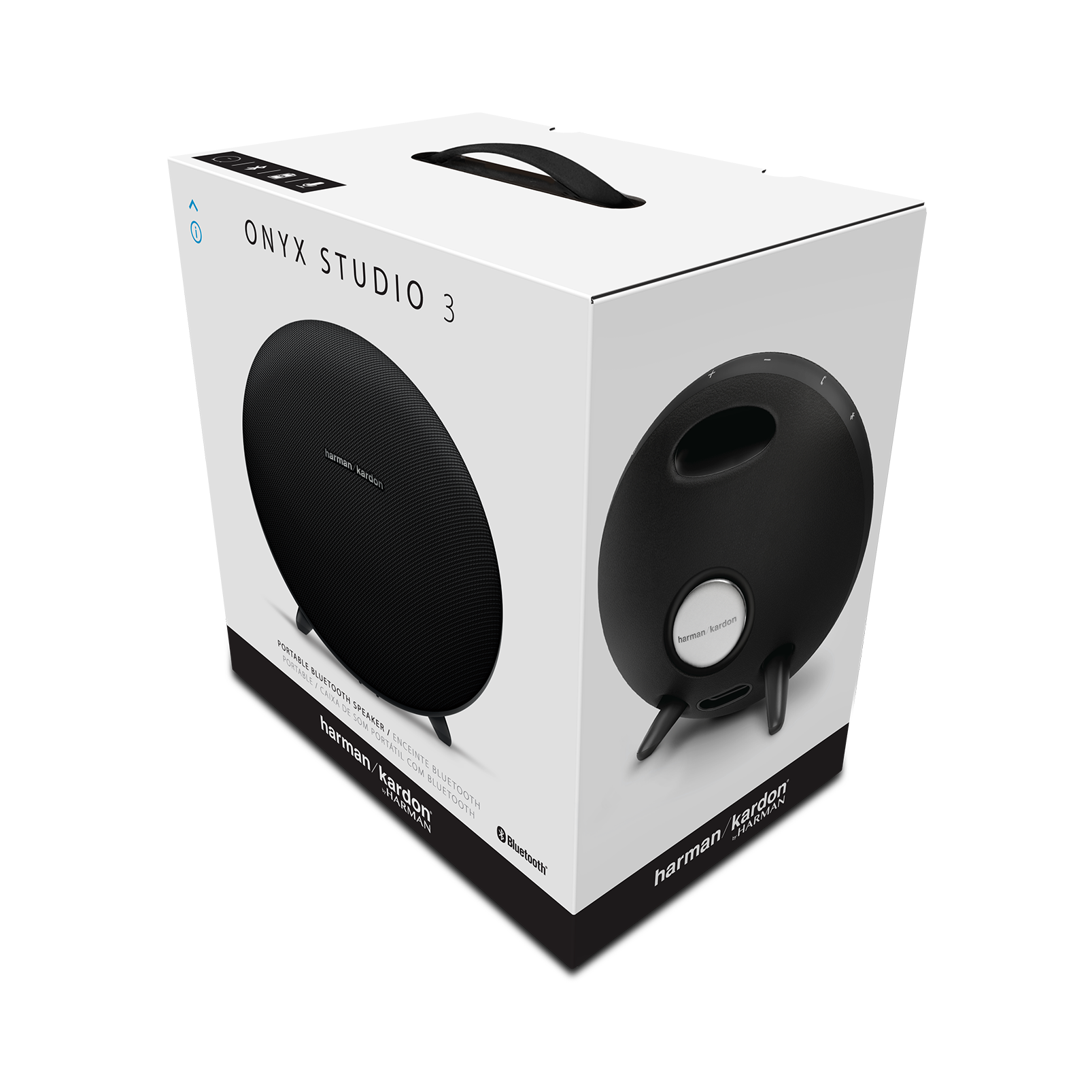

Onyx Studio 3

Details
Item# ONYXSTUDIO3REDAM
Variations
  • Select Color
Product Actions
Add to cart options
Promotions
Availability:

This item is currently not available.

General Specifications

Bluetooth® transmitter modulation GFSK,π /4 DQPSK, 8DPSK
Rated power 4x15W(AC mode); 4x7.5W(Battery mode)
Battery charge time 5hours
Bluetooth transmitter frequency range 2402MHz - 2480MHz
Signal-to-Noise Ratio 80dB A-weighted
Bluetooth version 4.1
Battery type 3.7V/2600mAh Lithium-ion
Power supply 19V/2A
Music playing time up to 5hours (Varies by volume level and music content)
Bluetooth transmitter power 0 - 9dBm
Support A2DP 1.3 AVRCP 1.5 HFP 1.6
Weight (g) 2071g

Audio Specifications

Frequency Response 50Hz-20kHz(-6dB)
Transducers Woofer 2 x 75mm, Tweeter 2 x 20mm

Dimensions

Dimensions (H x W x D) in (mm) 278.0 x 162.8 x 258.0
  • 1x Harman Kardon Onyx Studio 3
  • 1x Power adaptor
  • 1x Quick start guide
  • 1x Safety sheet
  • 1x Warranty card
Crafted with high-end materials, the Harman Kardon Onyx Studio 3 is a full-featured, portable Bluetooth speaker that delivers powerful audio with the iconic Harman Kardon design. You can enjoy music up to 5 hours of playtime thanks to the rechargeable battery and wirelessly connect two Harman Kardon Wireless Dual Sound enabled speakers together to elevate your music listening experience. Users will be able to make clear phone calls with the speaker from its built-in microphone which is powered by noise and echo cancelling technology. The exquisite design will enhance the style and compliment any room.

Search Result For ""

1 Year

Products purchased online or from an authorized local retailer and under warranty may qualify for an exchange with a valid receipt.

Purchases made from an unauthorized dealer will not be eligible for exchange.

Request an Exchange
Onyx Studio 3 is rated 4.5 out of 5 by 113.
Rated 5 out of 5 by from AMAZING sound A coworker has an onyx 2 and I have always been impressed by the volume and sound quality. When given the opportunity to WIN an onyx 3 by Sprint, I dropped my business card and suprisingly was a winner. I have LOVED my Onyx3. It has amazing bass and mid range. Volume isn't an issue when I'm working in the garage and an air compressor kicks on. My Bose was always drowned out, but the Onyx 3 I can hear clearly over the noise.
Date published: 2017-11-17
Rated 5 out of 5 by from Fantastic sound, durable I bought two of these on sale about a year ago and am totally satisfied. They work as well now as the day I bought them and I haven't noticed any difference in the battery (treat your batteries well, people!). I keep one at home and I take one to work (Work in a kitchen). Even in the hot, humid, greasy environment I keep one in, it's still working perfectly, though it's starting to look a little ugly. They say a 5 hour battery time, but I've found in reality it comes out closer to 3.5 - 4 hours. Still very nice considering the great quality and high volume they can put out. If you're looking for a portable house speaker, I highly recommend this. P.S. left one out in a dust storm in Utah once. Looked like another red rock when I retrieved it. No noticeable effects on performance.
Date published: 2018-09-27
Rated 5 out of 5 by from A must have speaker After compared both Bose & HK, finally decided to go with HK. Bass is perfect. Not too much, but not too crisp. Sound is obviously powerful. Clarity is okay, but if HK can make the acoustic clearer, nothing can beat it ! In addition that I love the design, I'm impressed that HK provides 1 adapter with so many cables for all types of outlet. I won't have to worry to look for new cables!
Date published: 2017-01-12
Rated 5 out of 5 by from Easy to set up. Awesome sound I have 2 onyx 3 speakers. After hearing one I had to pair it up. So I bought 2. I've been sitting in Newport Beach all morning in a little over five hours my speaker went dead. Used my cigarette lighter outlet in my truck and plugged the speaker in and it worked. I thought you could only use the AC power outlet from home etc. Anyways, sound is awesome. I paid 150 apiece forum well worth the money
Date published: 2016-10-23
Rated 5 out of 5 by from amazing for the size deeply bass with mid too, amazing performance for the size, people claims about the portability, but is soo easy, i wish exist a bigger onee with 100W-120W hahaha, i would buy it
Date published: 2017-09-12
Rated 5 out of 5 by from Perfect Speaker I have only had the speaker a week and I LOVE IT! Perfect for my dorm room, me and my roomate share it. The battery is slightly better than the 2nd version but overall it still produces grat sound
Date published: 2016-06-01
Rated 5 out of 5 by from Great Sound Pair is easy . The highs and lows sound extremely good.I purchased the factory refurbished version. Value to money.
Date published: 2018-03-26
Rated 5 out of 5 by from Excellent Sound Quality Great sound quality with elegant design and this speaker has pretty rich bass. The battery should have been better. But for this sound quality, I can compromise on battery.
Date published: 2018-06-07
  • y_2019, m_3, d_23, h_2
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.11
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_113
  • loc_en_US, sid_onyxstudio3, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_harmanaudio

My Onyx Studio 3’s power button keeps flashing even after charging via power adapter overnight. If I unplug the power adapter, the speaker would turn off after 10 seconds. Do I have to change the battery inside the speaker now? I haven’t used it much.

Asked by: Pklin
Thanks for reaching out, our apologies for the inconvenience and delay in response. We would like to work with you directly. Please submit a case request at https://www.harmankardon.com/support-contact.html and the Customer Service Team will be more than happy to assist you
Answered by: Rhae C
Date published: 2019-03-15

which onyx studio has aux input?

Asked by: gbexperience
The Onyx Studio 3, 4 and 5 all have aux inputs.
Answered by: Steve S
Date published: 2019-03-02

My Onyx Studio 3, When I have The speaker plugged with the charger, it will not allow me to play music. I can only play music from Bluetooth. after I charge it. Sometimes I have not charged the speaker and just want to plug it in. Then use Bluetooth.

Asked by: Peggysue
We would like to work with you directly to help you with your issue. Please submit a case request at https://www.harmankardon.com/support-contact.html and the Customer Service Team will be more than happy to assist you.
Answered by: Mario at Customer Service
Date published: 2019-02-11

connect onyx3 with a 4 or 5 via dual? so i can pair both, is it possible?

Asked by: AhmadAlomran
Unfortunately, you would not be able to pair a Harman/Kardon Onyx Studio 3 with an Onyx Studio 4 and 5. This is because the Dual Wireless Sound featured in the OnyxStudio 3 only gives you the capability to connect to a second Onyx Studio 3 since the wireless dual sound feature only works on the same model. And the Onyx Studio 4 has a different connect feature called HK Connect that uses an app to connect the speaker to another speaker that has the same feature.
Answered by: Mario at Customer Service
Date published: 2019-01-10

What kind of charger do I need to buy for this speaker? I have had it for about 2 years and the charger stopped working for some reason. I searched on google about this but it turns out there are different dimensions to the charger. Which one do I need,

Asked by: Narek
You can purchase third party adapter chargers, just make sure that the output is at 19V@2A which is the required power input for charging the battery of the ONYX STUDIO 3.
Answered by: Mario at Customer Service
Date published: 2018-12-21

How do I factory reset my Onyx Studio 3? I recently bought and connected a few of my devices but now it's having issues connecting so I want to delete all pairing info and reset it.

Asked by: Jaye
Press and hold the Phone and VOL + button simultaneously. After 5 seconds, the unit powers Off, and is now reset. If you need further assistance, please submit a case request at https://www.harmanaudio.com/support-contact.html and the Customer Service Team will be more than happy to assist you.
Answered by: Thilo
Date published: 2019-01-17

First of, what a fantastic speaker! I have 2 questions: 1- Any way I can view what devices my Onyx Studio 3 is paired with? 2- How do I upgrade the firmware via USB?

Asked by: Silver84
Hello! Thanks for your feedback! Unfortunately, we do not have a way to know what devices was paired to the speaker. While, the USB port is used for our service centers only who will be performing an update via a flash drive.
Answered by: Nick F
Date published: 2018-12-31

Does the onyx 2 has 3.5 audio jack?

Asked by: waks
Yes it does.
Answered by: Mario at Customer Service
Date published: 2018-11-13
