- SOLD OUT
- All-in-one, six-piece optimized performance
- Four two-way satellite speakers
- Voice-matched dual-driver center channel
- 100-watt powered subwoofer
HARMAN Support
Are you looking for product support,
HARMAN Support
Are you looking for product support,
Try your search again using these tips:
- Double check the spelling. Try varying the spelling.
- Limit the search to one or two words.
- Be less specific in your wording. Sometimes a more general term will lead you to the similar products.
Shop By Category
Please click PERSONALIZE to get started or select a design
Apple Pay™ Users: By continuing to checkout you understand and agree to our Terms of Sale, Terms of Use and Privacy Policy.
Your zip code edit
This item is currently not available.
- SOLD OUT
Features
All-in-one, six-piece optimized performance
The JBL® SSCS145.5 works together as a simple, all-in-one system that delivers JBL signature sound. The result? Better performance than any stand-alone components – by far. And you get more rich, real, true music and movie experiences.
Four two-way satellite speakers
The satellite speakers have titanium-laminate domes and are thin but rigid and deliver accurate high-frequency response even when the volume is way up. The high-frequency driver and the midrange driver are video-shielded, so put them wherever you like.

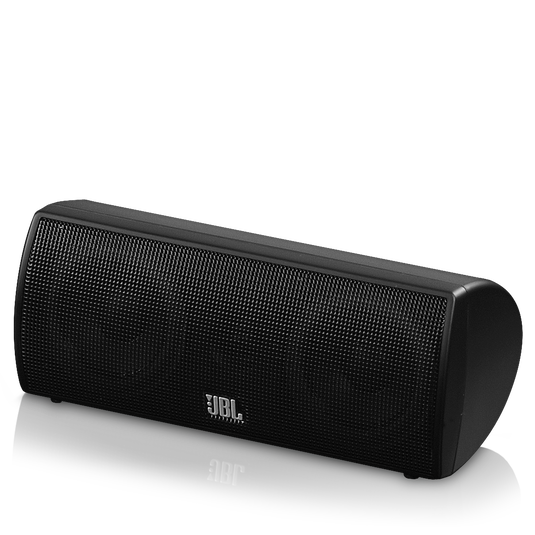

Voice-matched dual-driver center channel
The center channel is probably the hardest-working speaker in a home theater system. You get great power handling and efficiency, and clear dialogue from even the most dynamic movie soundtracks. Components are designed for optimal performance, voice-matched to the center.

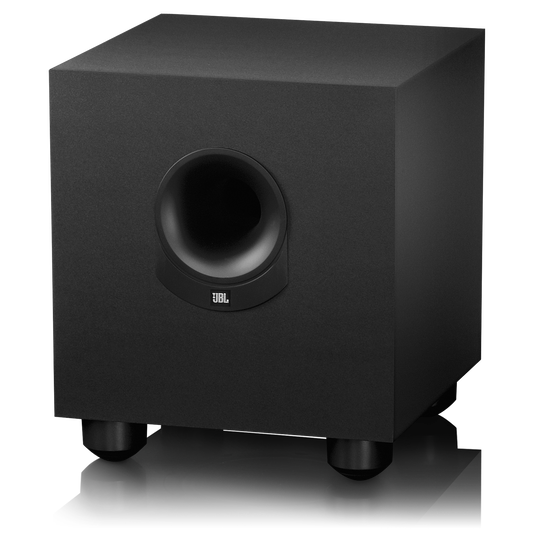

100-watt powered subwoofer
A fast-moving, 8-inch (200mm) woofer and 100 watts of amplification produce clean, lifelike bass. A bass reflex enclosure spreads the response with a double peak, extending it further into the bass region. The effect? Your movies will shake you.
Specs & Downloads
Item# SCS145.5BK
Description
Now JBL brings all of the excitement of the movies directly to your living room. The SCS145.5 loudspeaker system includes four identical 2-way satellite speakers with titanium-laminate dome tweeters; a voice-matched dual-driver center speaker; an 8-inch, 100-watt powered subwoofer that delivers floor-shaking sound effects and all of the cables you need to hook up your speakers and start enjoying your home theater today. The satellites come with wall-mounting brackets, or optional floor stands may be purchased separately.
General Specifications
- Finish
- Black
- Series
- Surround Cinema Sound Series
- Speaker Enclosure Type
- Sealed
Audio Specifications
- Speaker Sensitivity
- (2.83V@1m) 86dB
- Speaker Nominal Impedance
- 8 ohms
- Satellite Sensitivity
- (2.83V@1m) 86dB
- Satellite Nominal Impedance
- 8 ohms
System Specifications
- System Weight (kg)
- 16.46
- Amplifier Power (RMS)
- 100W
- Number of Channels
- 5.1 channels
- System Weight (lb)
- 36.29
- System Frequency Response
- 35Hz – 20kHz
Subwoofer Specifications
- Subwoofer Connections
- Line-level inputs left and right, LFE input, surround and center speaker direct wiring inputs
- Subwoofer Controls
- Subwoofer level
Speaker Specifications
- Speaker Midrange Transducer
- Dual 3" (75mm) drivers, video-shielded
- Speaker Wall-Mount Capable
- Yes - Brackets Included
- Speaker Type
- Titaniim-laminate-dome tweeter, sealed enclosure
- Speaker High-Frequency Transducer
- One 1/2" (13mm) titanium-laminate dome, video-shielded
Dimensions
- Subwoofer Weight (kg)
- 13.6
- Speaker Width (mm)
- 194
- Speaker Height (mm)
- 83
- Speaker Depth (mm)
- 95
- Satellite Weight (lb)
- 1.1
- Subwoofer Height (mm)
- 381
- Subwoofer Depth (mm)
- 356
- Satellite Width (in)
- 3-3/16
- Subwoofer Width (in)
- 13
- Satellite Height (mm)
- 111
- Speaker Width (in)
- 7-5/8
- Subwoofer Height (in)
- 15
- Speaker Depth (in)
- 3-3/4
- Satellite Height (in)
- 4-3/8
- Satellite Weight (kg)
- 0.5
- Satellite Depth (in)
- 3-3/4
- Speaker Height (in)
- 3-1/4
- Subwoofer Width (mm)
- 330
- Subwoofer Weight (lb)
- 30
- Satellite Width (mm)
- 81
- Satellite Depth (mm)
- 95
- Subwoofer Depth (in)
- 14
- Speaker Weight (lb)
- 1.89
- Speaker Weight (kg)
- 0.86
- Weight
- CENTER... 1.89 lb (0.86kg)
- Weight
- SATELLITES... 1.1 lb (0.5kg)
- Weight
- SUBWOOFER... 30 lb (13.6kg)
- Dimensions (H x W x D)
- CENTER... 3-1/4 inch x 7-5/8 inch x 3-3/4 inch (83mm x 194mm x 95mm)
- Dimensions (H x W x D)
- SATELLITES... 4-3/8 inch x 3-3/16 inch x 3-3/4 inch (111mm x 81mm x 95mm)
- Dimensions (H x W x D)
- SUBWOOFER... 15 inch x 13 inch x 14 inch (381mm x 330mm x 356mm)
Satellite Speaker Specifications
- Satellite High-Frequency Transducer
- One 1/2" (13mm) titanium-laminate dome, video-shielded
- Satellite Enclosure Type
- Sealed
- Satellite Type
- Titaniim-laminate-dome tweeter, sealed enclosure
- Satellite Midrange Transducer
- One 3" (75mm) driver, video-shielded
Center Speaker Specifications
- Recommended Amplifier Power (RMS)
- 10 Watts – 100 watts
- Nominal Impedance
- 8 ohms
- Sensitivity (1 watt @ 1 meter)
- 86dB
- High-Frequency Transducer (Tweeter)
- One 1/2 inch (13mm) titanium-laminate dome, video-shielded
- Midrange Transducer
- Dual 3 inch (75mm) drivers, video-shielded
Control and Connection Specifications
- Connections
- (Subwoofer) Line-level inputs left and right, LFE input, surround and center speaker direct wiring inputs; (Satellite/Center Speakers) direct wiring inputs.
