Studio 520C
$349.95
4.8 (65)
Write a review

Features

null

25 – 150 watts suggested amplifier power range

JBL engineers have designed the Studio 520C centre-channel loudspeaker to deliver robust sound from a compatible AVR (audio/video receiver) or 25- to 150-watt power amplifier, whether you are using it as a stand-alone unit or as the centerpiece of a surround-sound system.

null

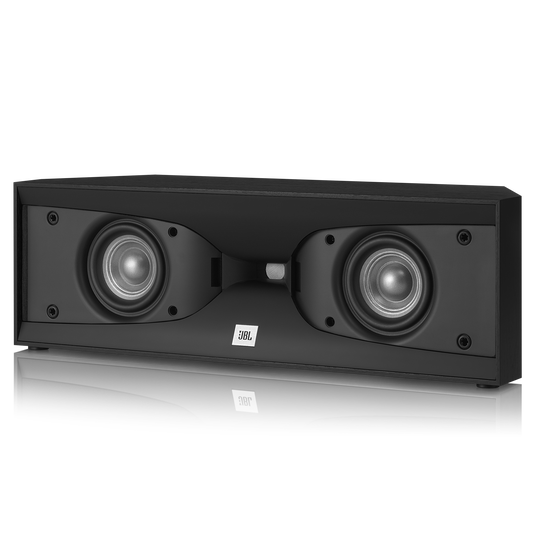

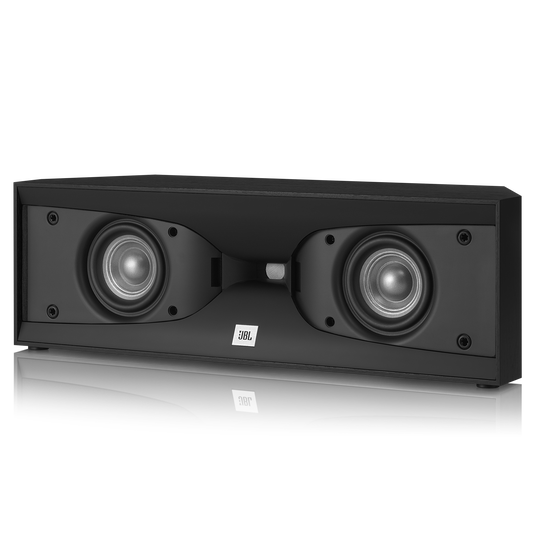

Dual 4" (100mm) PolyPlas woofer cones

Powerful bass affects more than just your ears. It resonates through your entire body, creating a soundscape that you can feel as well as hear. The JBL Studio 520C centre-channel loudspeaker delivers accurate low-frequency sounds from a pair of 4-inch (100-millimetre) ribbed PolyPlas woofers. The ribs improve strength while reducing distortion. The result is rich, articulate bass.

null

Symmetrical Field Geometry (SFG) magnet assembly

Thanks to a heavy-duty Symmetrical Field Geometry (SFG) magnet assembly, the Studio 520C centre-channel loudspeaker’s dual low-frequency woofers deliver highly focused bass. The result is pristine, articulate sound.

null

1" (25mm) high-frequency compression driver

The JBL Studio 520C centre-channel loudspeaker’s high-frequency compression driver lowers distortion and provides a wider dynamic range than is possible from conventional high-frequency and midrange drivers. The tweeter includes a one-piece Teonex® diaphragm/surround assembly fitted with a 1-inch (25-millimetre) voice coil that can deliver enhanced vocal articulation.

null

Glass-filled ABS Bi-Radial high-frequency horn

Horn-shaped loudspeaker designs optimize high-frequency output by directing the sound to the listener with pinpoint accuracy, thereby eliminating reverberations, reflections off walls, and other artefacts. The Studio 520C centre-channel loudspeaker features a glass-filled ABS Bi-Radial high-frequency horn that delivers professional-level sound to your home.

null

Low-loss, two-way crossover network

The Studio 520C centre-channel loudspeaker’s low-loss, two-way crossover network ensures a clean transition for sound coming from individual low-frequency and high-frequency drivers, thereby reducing distortion while improving clarity.

null

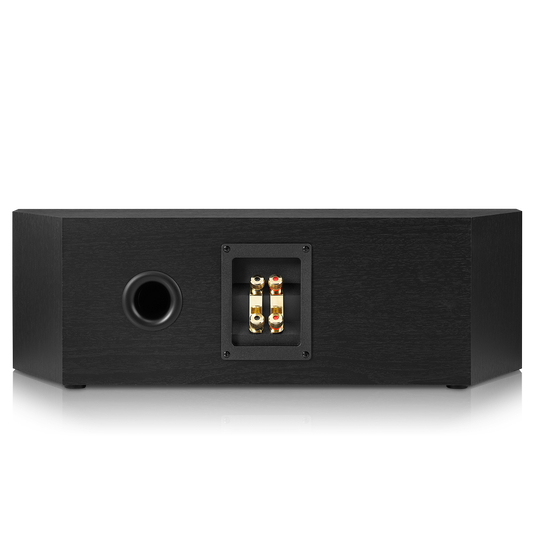

Bi-wire capability

The Studio 520C centre-channel loudspeaker will work with multiple power amplifiers or connection setups – or both – for single-wire or bi-wire operation. The result is enhanced versatility in the ways you can use the Studio 520C speaker.

null

Sturdy 3/4" (19mm) MDF enclosure

The Studio 520C centre-channel loudspeaker’s cabinet is built with the same attention to perfection as every other component. Rigid, heavily braced MDF (medium-density fibreboard) materials prevent unwanted resonances, while non-parallel surfaces eliminate sonic interference.

null

Exclusive design

The same attention to detail that went into the 520C centre-channel loudspeaker’s technical design was paid to creating a powerful, sophisticated look that will fit within even the most discerning householder’s décor. The 520C is available in a black or cherry finish.

Frequently Bought Together

Specs & Downloads

Item# STUDIO 520CBK

Description

Dimensionally accurate centre-channel sound.

A truly enveloping theatre-quality surround-sound experience begins with the centre channel. The Studio 520C centre-channel loudspeaker raises your home system to the next level with the kind of advanced technology that JBL® engineers developed for professional audio systems. The Studio 520C features a pair of 4-inch (100-millimetre) low-frequency woofers and a high-frequency compression driver surrounded by a glass-filled Bi-Radial® horn, a combination that delivers crisp, focused, dimensionally accurate sound. Using specially developed materials – including a ribbed PolyPlas™ cone and a Symmetrical Field Geometry™ (SFG) magnet assembly for the woofers – the Studio 520C delivers powerful and focused bass sound. A compression tweeter housed within the same type of Bi-Radial horn that JBL engineers developed for concert sound systems delivers high frequencies that are equally distinct and precisely aimed.

General Specifications

Type
Two-way dual-woofer, center-channel
Finish
Black

Audio Specifications

Maximum Recommended Amplifier Power
150W
Frequency Response
60Hz-40kHz
Crossover Frequencies
1.5kHz
Nominal Impedance
6 ohms
Sensitivity
(2.83V/1m) 88dB

Dimensions

Height (mm)
172
Depth (in)
6-5/8
Height (in)
6-3/4
Weight (kg)
7.5
Width ( in)
21-7/8
Weight (lb)
16.6
Depth (mm)
168
Width (mm)
555

Control and Connection Specifications

Connector Type
Dual gold-plated binding posts (bi-wire capable)
