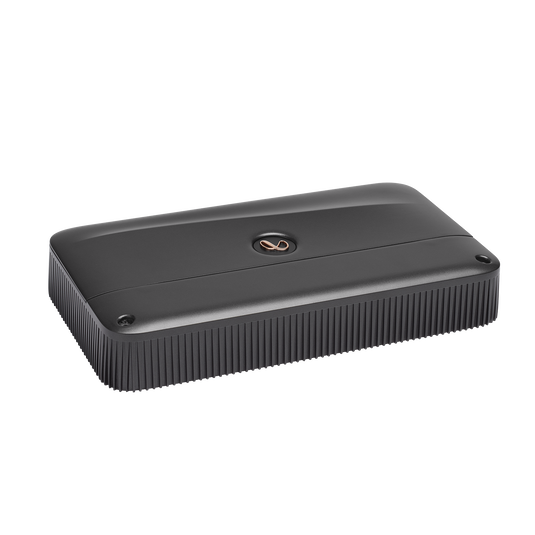

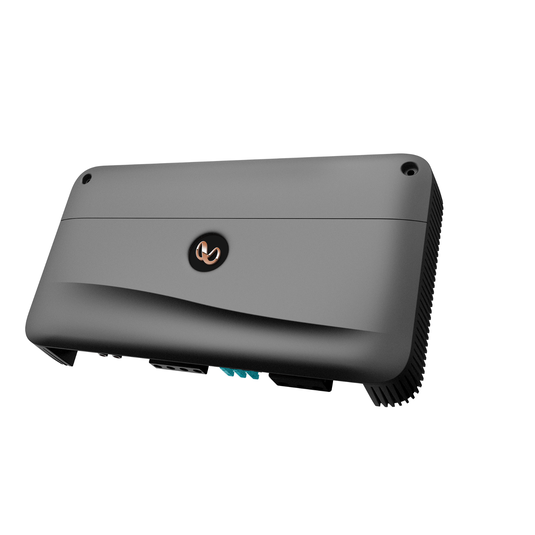

Reference 10001A
$459.95
0.0 (0)
Write a review

Features

Reference 10001A Compact size - Image

Compact size

The Infinity Reference 10001A amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.

Reference 10001A High and low level input - Image

High and low level input

Speaker-level and low-level inputs allow the Reference 10001A to integrate with both aftermarket and factory car stereo systems.

Reference 10001A Variable crossover and bass boost - Image

Variable crossover and bass boost

Unlike many amplifiers available at similar prices, the Reference 10001A features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.

Reference 10001A Low noise and distortion - Image

Low noise and distortion

The Reference 10001A has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise.

Reference 10001A Input Level Control - Image

Input Level Control

When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.

Reference 10001A Full on-board protection - Image

Full on-board protection

On-board circuitry protects the Reference 10001A from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.

Reference 10001A Phase Switch - Image

Phase Switch

This switch changes the input phase to inverted or noninverted.

Reference 10001A RBC wired remote - Image

RBC wired remote

The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.

Specs & Downloads

Item# AMPRF10001AAM

Description

Series of high-performance mono, 4 and 5 channel car amplifiers

Reference 10001A mono subwoofer amplifier delivers a blistering 1,000-Watts RMS using Class D amplifier topology to ensure cool running and minimal current draw. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car's factory radio — and Infinity includes RCA-to-speaker wire adapters so you'll make the right connections. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.

General Specifications

600 watts RMS x 1 at 4 ohms (1000 watts RMS x 1 at 2 ohms)

Class D amp technology

frequency response
10-320 Hz

variable low-pass filter (32-320 Hz, 12 dB/octave)

variable bass boost (0-12dB at 45Hz)

phase switch (0, 180 degrees)

wired remote level control included

preamp inputs and outputs

speaker-level inputs (speaker wire-to-RCA adapters included)

4-gauge power and ground leads recommended — wiring and hardware not included with amplifier

fuse rating
35A x 3

WxHxD=320mm x 55.5mm x 180mm WxHxD=12-5/8” x 2-3/16" x 7-1/8”

1000w RMS / 2000W MAX

What's in The Box?

  • 1 x One Reference 10001A mono subwoofer car amplifier
  • 6 x 35A ATO fuses (3 installed, 3 spare)
  • 2 x Bare wire-to-RCA adapters
  • 1 x Remote bass control module
  • 1 x 16.5' Remote control cable (RJ-25 plugs on both ends)
  • 2 x Self-tapping screws for remote (M3 x 15mm)
  • 4 x Mounting screws (M4 x 53mm)
  • 2 x Infinity decals
  • 1 x Owner's manual
