Reference 7005A
$429.95
0.0 (0)
Write a review

Features

Reference 7005A Compact size - Image

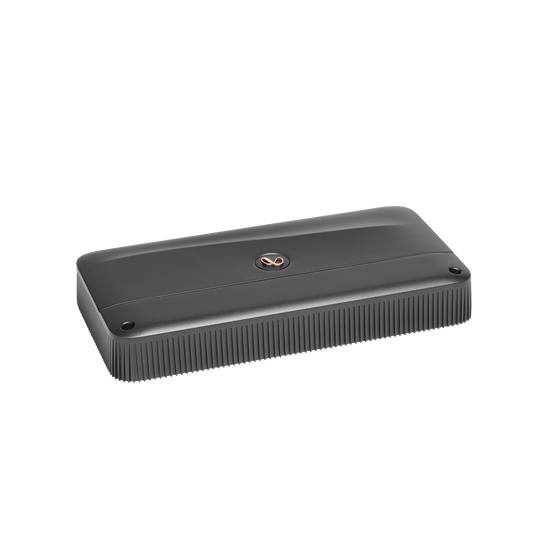

Compact size

The Infinity Reference 7005A amplifier feature a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.

Reference 7005A High and low level input - Image

High and low level input

Speaker-level and low-level inputs allow the Reference 7005A to integrate with both aftermarket and factory car stereo systems.

Reference 7005A Variable crossover and bass boost - Image

Variable crossover and bass boost

Unlike many amplifiers available at similar prices, Infinity Reference amps feature variable electronic crossovers and bass boost circuit to allow for fine-tuning.

Reference 7005A Low noise and distortion - Image

Low noise and distortion

Produces tight bass with low distortion at high SPL. Balanced Differential Inputs are used to ensure low noise.

Reference 7005A Input Level Control - Image

Input Level Control

When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.

Reference 7005A Full on-board protection - Image

Full on-board protection

The on-board circuitry to protect them from shorts, temperature, overvoltage and undervoltage. An LED indicator is included on all four models to let you know when one of these conditions exists.

Reference 7005A Phase Switch - Image

Phase Switch

This switch changes the input phase to inverted or non-inverted. This is especially helpful with the subwoofer channel.

Reference 7005A RBC wired remote - Image

RBC wired remote

The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.

Specs & Downloads

Item# AMPRF7005AAM

Description

Series of high-performance mono, 4 and 5 channel car amplifiers

Infinity's Reference 7005A 5-channel amplifier provides a full system solutions without breaking a sweat, and it'll look good doing it. It delivers 50-Watts RMS to each of the front and rear speakers, and a ground pounding 500-Watts RMS to the subwoofer channel — a much better balance of "speaker-to-sub" power than most of conventional 5-channel amplifiers on the market. For higher output, you can bridge the amp to 3-channel mode and power your front speakers with 140-Watts per channel, while still delivering 500-Watts to the subwoofer channel. Speaker-level inputs allow the Reference 7005A to work in almost any system, even if you're keeping your factory radio. Separate high-pass and low-pass crossovers on the front and rear channels and dedicated low-pass crossover, bass boost, and phase switch for the subwoofer channel provides an incredible amount of control and tuning capability. The Reference 7005A is truly a total system solution in one easy to install chassis.

General Specifications

50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms

65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms

140 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms

variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels

low-pass filter (32-320 Hz, 12 dB/octave) on subwoofer channel

bass boost on subwoofer channel (0-12dB at 45Hz)

phase switch on subwoofer channel (0, 180 degrees)

preamp and speaker-level inputs

fuse rating
30A x 3

4-gauge power and ground leads recommended — wiring and hardware not included with amplifier

WxHxD=360mm x 55.5mm x 180mm WxHxD=14-3/16” x 2-3/16" x7-1/8”

What's in The Box?

  • 1 x Reference 7005A five channel amplifier
  • 4 x Bare wire-to-RCA adapters
  • 6 x 30A ATO fuses (3 installed, 3 spare)
  • 1 x Remote bass control module
  • 1 x 16.5' Remote control cable (RJ-25 plugs on both ends)
  • 2 x Self-tapping screws for remote (M3 x 15mm)
  • 4 x Mounting screws (M4 x 53mm)
  • 2 x Infinity decals
  • 1 x Owner's manual
What's in The Box?
