JBL DSP Amplifier DSP4086
$329.95 Price reduced from $439.95 to Save 25%
0.0 (0)
Write a review

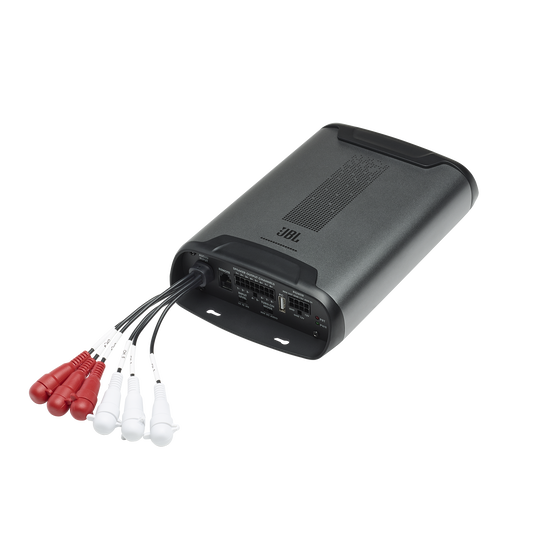

JBL DSP Amplifier DSP4086 Small footprint, All-in-One Class D Amplifier with DSP Control - Image

Small footprint, All-in-One Class D Amplifier with DSP Control

JBL DSP Amplifier has everything you need to create a professional sound quality audio system with the ability to mount your amplifier in tight spaces.

JBL DSP Amplifier DSP4086 Everything You Need to Get Started - Image

Everything You Need to Get Started

JBL DSP Amplifier has everything you need to create an audio system, or expand your existing one, plus the ability to add more power by using it as a line driver when you are ready for your next power upgrade.

JBL DSP Amplifier DSP4086 Simple Tuning Interface with Complex Features - Image

Simple Tuning Interface with Complex Features

Easy-to-use tuning interface anyone can understand, learn and control with enough horsepower to satisfy experienced installers. The Windows PC user interface includes variable crossover control, 0-to-48dB selectable slopes, 31-band parametric or graphic EQ adjustment, time delay in 0.2ms, output clipping indicator, assignable input to output mixer with input channel summing, output channel gain, master volume control, clipping indicator and ability to save up to 10 presets.

Features

JBL DSP Amplifier DSP4086 Versatile Connectivity - Image

Versatile Connectivity

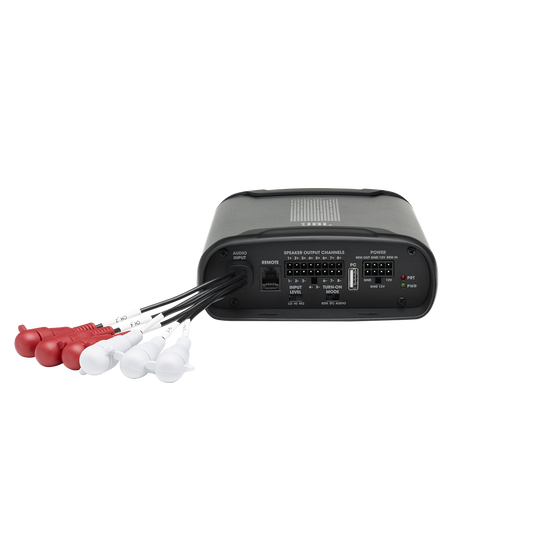

This amplifier has balanced differential inputs to provide you with the best sound quality & noise rejection, can accept RCA or speaker-level inputs so it'll work in almost any system, and the package includes screw-on RCA-to-bare wire adapters for the speaker-level signal. Plus, all wire connections are conveniently labeled to make installation a cinch.

JBL DSP Amplifier DSP4086 Convenient Bass Control - Image

Convenient Bass Control

Wired remote control allows for quick adjustment of low frequency output with -30 to +6dB adjustment directly from the driver's seat

JBL DSP Amplifier DSP4086 Conformal Coated PCB - Image

Conformal Coated PCB

Your JBL DSP Amplifier is engineered to withstand harsh conditions present in a wide variety of applications, using conformal coated circuit boards to ensure flawless power delivery, year after year.

JBL DSP Amplifier DSP4086 Harman Standard Reliability Testing - Image

Harman Standard Reliability Testing

JBL is one of the greatest audio brands in the world. This is not a coincidence given the arduous testing and quality control. We take our craft seriously and want every consumer to have a world class experience that lasts and lasts.

JBL DSP Amplifier DSP4086 JBL Industrial Design - Image

JBL Industrial Design

At JBL, we take pride in our iconic design heritage. Our design team took great care to ensure that your JBL DSP Amplifier will look amazing mounted wherever your music takes you. The smooth curve of the amplifier body, angular end cap design, and digitized JBL logo all tie together with our classic, current and future design language while concentrating on the design of your lifestyle.

Specs & Downloads

Item# DSP4086AM

Description

8-channel Class D Amplifier Design with Digital Signal Processing

JBL DSP Amplifier is an audio processor for fine-tuning of aftermarket audio systems. It is a self-contained audio system with 6-channel audio inputs, 8-channel powered audio outputs, an easy to use tuning interface a novice can understand and detailed tuning capabilities to satisfy even experienced installers. With a USB connection to access the tuning interface using a Windows PC, you can control fully variable crossovers, selectable 0-to-48dB slopes, time delay, 31-band parametric or graphic EQ adjustment, assignable input to output mixer with input channel summing, channel gain, master volume control, clipping indicator to ensure the audio output is not distorted and ability to save up to 10 presets.

General Specifications

Max Power
1000W peak
RMS Power Output @ 2Ω
60W x 8, <1% THD+N
RMS Power Output @ 4Ω
40W x 8, <1% THD+N

Variable crossovers with hi-pass, lo-pass, band-pass capability & adjustable 0-to-48dB slopes

Selectable EQ adjustment
Parametric or Graphic

Selectable 12V/Signal Sense/DC Offset turn-on modes, with 12V remote output

Frequency Response 10Hz to 22kHz @ -3dB

Signal-to-Noise Ratio
>90dB @ 4Ω

Subwoofer Level Control -30dB to +6dB

Fuse Rating
40A
Operating Voltage
8V to 16V

What's in The Box?

  • 1 x DSP Amplifier
  • 1 x Wiring harness
  • 1 x USB tuning cable
  • 1 xWired remote level bass control
  • 1 x Mounting hardware
  • 6 x Hi level input adapters
  • 1 x Spare fuse
  • 4 x Wire ties
  • 2 x JBL sticker
  • 1 x Quick Start Guide
