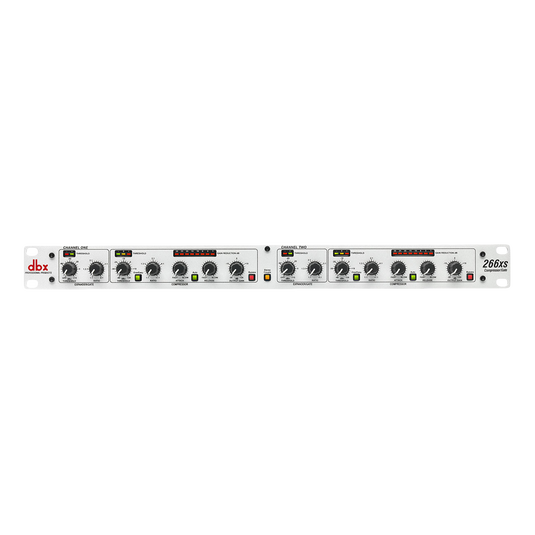

266xs
- Stereo or Dual Mono operation
- OverEasy®/Hard Knee Selection
- Program-adaptive expander/gates
- Separate precision LED
- dbx’s AutoDynamic™ circuitry
- Stereo Couple Switch
- Balanced inputs and outputs on 1/4" TRS and XLR connectors
- Side Chain inserts
- Classic dbx® "Auto" mode
$225.00
Please click PERSONALIZE to get started or select a design
Apple Pay™ Users: By continuing to checkout you understand and agree to our Terms of Sale, Terms of Use and Privacy Policy.
Your zip code edit
In Stock
Features
Stereo or Dual Mono operation
Operate the dbx266xs's gating, and compression in either stereo or dual mono modes.
OverEasy®/Hard Knee Selection
Select between our famous OverEasy compression curve and the classic “Hard Knee” curve popularized by the original dbx 160, 161 and 162.
Program-adaptive expander/gates
Utilize the 266xs's Expander/Gate controls for numerous applications. Slow settings are useful for gating out noise present behind vocals and acoustic instruments. Fast settings are useful for tightening up the sound of percussion (e.g., kick or snare drum) and drying up leakage from other instruments into percussion tracks.)
Separate precision LED
LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup
dbx’s AutoDynamic™ circuitry
We scaled the program-dependent Attack and Release controls with dbx’s AutoDynamic™ circuitry, so that the 266xs full range of controls produce voicings that extend from slow leveling to aggressive peak limiting.
Stereo Couple Switch
Press the dbx266xs's STEREO COUPLE switch in for stereo operation where Channel 1 becomes the master controller for both channels. All of Channel 2’s controls, switches, and LEDs will be disabled (except for the Channel 2 GAIN REDUCTION meter), since Channel 2 is the secondary unit.
Balanced inputs and outputs on 1/4" TRS and XLR connectors
The 266xs features balanced inputs and outputs on 1/4" TRS and XLR connectors which help eliminate common mode noise problems that may arise
Side Chain inserts
The dbx266xs's side chain inserts enable use of an outboard processor or signal to control compression or gating.
Classic dbx® "Auto" mode
Override the dbx266xs's ATTACK and RELEASE controls and enable preset program-dependent attack and release times with Auto Mode. These times are derived from the input signal and continuously change to match its dynamics. When enabled, the Auto switch lights indicating the attack and release times are being automatically adjusted in a program-dependent fashion. Enabling this AUTO function duplicates the “classic dbx sound” of the 166A which is a standard in the industry.
Specs & Downloads
Item# DBX266XSV
Description
Bring a more professional sound to your mix.
The 266xs puts pleasing compression and smooth gating within reach of everyone. The classic dbx® compression delivers everything from mellow “leveling,” to aggressive peak limiting. In addition, the 266xs’s AutoDynamic™ circuitry continuously adjusts attack and release settings in real time in order to optimally match program material. The advanced gating circuitry in the 266xs uses a program-dependent timing algorithm to produce ultra-smooth release characteristics—even with complex signals. Thanks to the dynamic range of the dbx® VCA, the 266xs can provide reliable gating for any circumstance. The 266xs also includes separate LED ladders measuring gain reduction, compression threshold, and gate threshold, making the 266xs intuitive and easy to use.
General Specifications
- Frequency Response Flat
- 20Hz - 20kHz, +0, -0.5dB
- Frequency Response Bandwidth
- 0.35Hz - 90kHz, +0, -3dB
- System Performance Distortion + Noise
- <0.2%; any amount of compression at 1kHz
- System Performance Intermodulation Distortion
- <0.2% SMPTE
- System Performance SMPTE IMD
- Typically <0.08% @ +10dBu (15dB Gain reduction)
- System Performance Noise
- <-93dB, unweighted (22kHz measurement bandwidth)
- System Performance Dynamic Range
- >114dB, unweighted
- System Performance Interchannel Crosstalk
- <-95dB, 20Hz to 20kHz
- System Performance Common Mode Rejection
- >40dB, typically >55dB @ 1kHz
- Stereo Coupling
- True RMS Power Summing™
- Compressor Threshold Range
- -40dBu to +20dBu
- Compressor Threshold Characteristic
- Selectable OverEasy® or Hard Knee
- Compressor Ratio
- 1:1 to Infinity:1
- Compressor Attack Time
- Scalable Program-Dependent AutoDynamic™
- Compressor Release Rate
- Scalable Program-Dependent AutoDynamic™
- Expander Gate Threshold Range
- -60dBu to +10dBu
- Expander Gate Expansion Ratio
- 1:1 to 4:1
- Expander Gate Attack Time
- <100μSec
- Expander Gate Release Rate
- Program-Dependent
- Operating Voltage
- 100VAC -120VAC 50/60Hz; 230VAC 50/60Hz
- Power Consumption
- 15 Watts
- Operating Temperature
- 32°F to 113°F (0°C to 45°C)
Audio Specifications
- Input Impedance (Balanced or Unbalanced)
- > 40kΩ
- Input (Balanced or Unbalanced) Max Level
- +22dBu
- Output Impedance @ +4dBU
- Impedance Balanced
- Output Impedance @ -10dBU
- Impedance Balanced
- Output Max Level
- > +21dBu, > +18dBm (into 600Ω)
- Sidechain Insert (1/4” TRS Phone)
- Normalled
- Sidechain Insert Impedance
- Tip = >10kΩ (Input) Ring = 2kΩ (Output)
- Sidechain Insert Max Input Level
- +22dBu
- Sidechain Insert Max Output Level
- >+20dBu
Dimensions
- Height
- 1.75 in (4.45 cm)
- Depth
- 5.75 in (14.6 cm)
- Width
- 19 in (48.26 cm)
- Weight
- 4.84 lb (2.19 kg)
What's in The Box?
- 1 x dbx 266xs
- 1 x AC Power Cord
- 1 x Operation Manual (including Registration Card)
