DriveRack 260


DriveRack 260 Wizard function - Image

Wizard function

Menu based setup procedure that includes system setup and configuration, Auto-EQ, and Advanced Feedback Suppression™ (AFS™) setup.

DriveRack 260 PeakStopPlus® limiters - Image

PeakStopPlus® limiters

Provide protection against speaker blowouts

DriveRack 260 Configurable delay - Image

Configurable delay

With 2.7 seconds of of alignment and zone delay

Frequently Bought Together

Specs & Downloads

Item# DBX260V

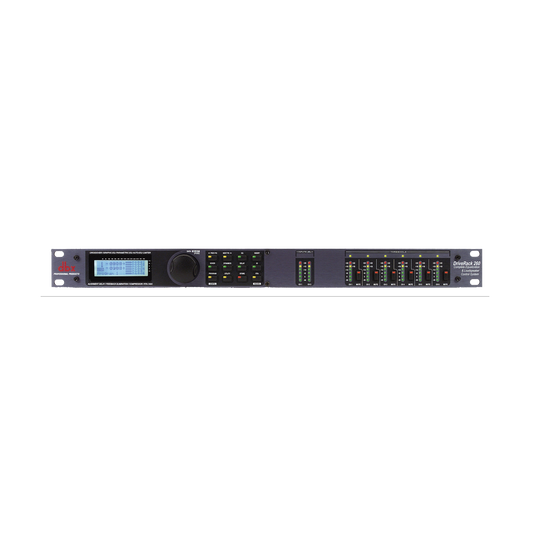

The perfect solution for loudspeaker system management

The DriveRack® 260 loudspeaker management system has been designed to provide “Everything you need between the mixer and the power amps”. From the powerful DSP modules to the multiple control surfaces, the 260 provides all the processing and control necessary for both installation and live use. Additionally, the Wizard function enables any user to quickly set up and use the 260 to its full potential by streamlining the setup process and providing a menu based setup procedure that includes system setup and configuration, Auto-EQ, and Advanced Feedback Suppression™ (AFS™) setup. The 260 offers two inputs and six outputs on XLR connectors. Each input channel provides a choice of EQ, either a 9-band Parametric or a 28-band Graphic EQ. Each input channel also boasts two selectable insert processors with a selection of Notch Filtering, classic dbx® Compression, Auto Gain Control, Sub-Harmonic Synthesis, or our own patent-pending Advanced Feedback Suppression™ (AFS™). The DriveRack® 260 also offers a configurable Delay with 2.7 seconds of total delay time. The 260 provides full Bandpass and Crossover filtering and routing including Bessel, Butterworth and Linkwitz-Riley topologies. There is Parametric EQ available on each output as well as dbx® PeakStopPlus™ Limiting. The 260 provides a full-time RTA for live sound applications, while contractors will appreciate its control inputs for wall-panel logic and volume control.

General Specifications

A/D Converter
dbx Type IV™ Conversion System
A/D Dynamic Range
(line) >113 dB, A-weighted, >110 dB unweighted
Type IV Dynamic Range
>119 dB, A-weighted, 22kHz BW; >117 dB, A-weighted, 22kHz BW
Sample Rate
D/A Dynamic Range
112 dB A-weighted, 109dB unweighted
Dynamic Range
>110 dB A-weighted, >107dB unweighted
0.003% typical at +4dBu, 1kHz, 0dB gain
Frequency Response
20Hz – 20kHz, +/- 0.5dB
Interchannel Crosstalk
>110dB, 120dB typical, (input-to-output

Audio Specifications

(2) line inputs. (1) RTA Mic input
Input Connectors
(2) Female XLR line inputs. XLR RTA Mic input
Input Type
Electronically balanced/RF filtered
Input Impedance
>40k ohm
Max Input
+30dBu with input jumpers in +30 position
> 45dB
Mic Preamp Phantom Power
+15VDC (RTA)
Mic Preamp Equivalent Input Noise (EIN)
< -110dB, 22Hz-22kHz, 150 ohm (RTA)
6 total

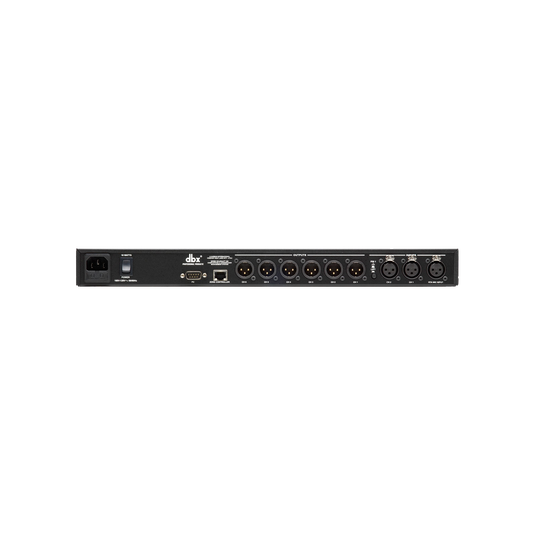

Output Connectors
Male XLR
Output Type
Electronically balanced, RF filtered
Output Impedance
Max Output

What's in The Box?

  • 1 x DriveRack 260 Loudspeaker Management System
  • 1 x Power Cord
