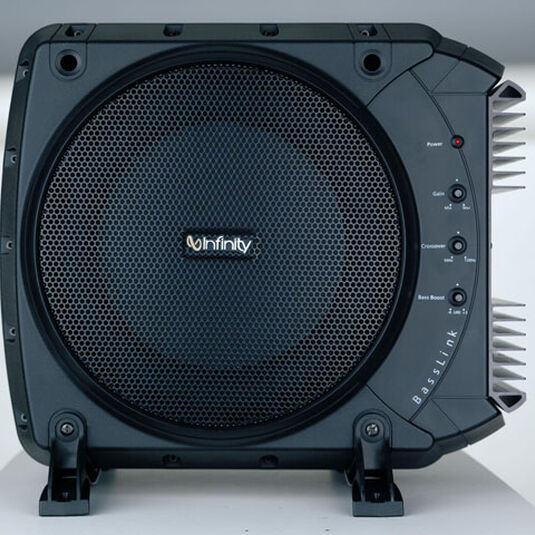

BassLink

10" Woofers

The Infinity BassLink system uses two ultra-rigid 10" woofers to deliver extreme output in any car audio system. One woofer is powered by BassLink’s 200-watt digital amplifier, and the other operates as a passive radiator. By using a passive radiator, BassLink doesn’t have to use a larger ported enclosure. This setup keeps BassLink’s profile slim, making it easy to install in any vehicle – even those with limited space.

200-watt digital amplifier

When you want your bass to really bump, you need all the good, clean power you can get. You need a subwoofer amplifier that is both powerful and efficient, which is exactly what you get with the Infinity BassLink. It uses an extremely efficient Class D design that delivers 200 watts of power to BassLink’s active 10" woofer. Now, that’s some power. More than other types of amplifiers, this Class D design turns the power extracted from your vehicle’s charging system into output to drive the woofer. BassLink is so efficient that it radiates little heat and puts its power into sound. You’ll appreciate that power when you have your system cranked up. The BassLink system also features a servo-control circuit that continually monitors the voice coil’s position and prevents the distortion that erupts from overdriving a conventional woofer. By offering more control over the woofer even with the instantly changing demands of music, the BassLink system can extract loud, deep bass from an incredibly small enclosure. So go for it. With BassLink, you are going to get a powered subwoofer system with more clean, efficient power going to the subwoofer – and you know what that means. It means get ready to rock and roll, because your vehicle is going to be shaking with bass.

Work with any system

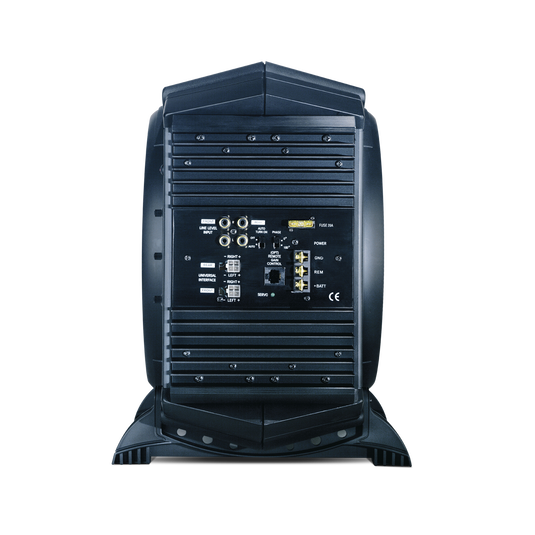

The Infinity BassLink system was designed to be installed in nearly any type of car audio system. Have a factory OEM system? BassLink includes speaker-level inputs that allow it to be easily integrated into nearly any factory-built system. Since it also includes an audio-sense circuit, the system will turn the amplifier on whenever it detects an audio signal. Are you adding BassLink to an aftermarket system that has RCA subwoofer outputs? BassLink has RCA line-level inputs for integration into a truly high-performance car audio system. Either way, BassLink accepts up to four channels of input to ensure that your system will have nonfading bass for the best possible performance.

Features

BASSLINK Complete control - Image

Complete control

The BassLink system offers a complete set of user-adjustable controls so you can optimize the bass response and output for the highest performance from your particular vehicle. The controls include: a 0- or 180-degree phase switch; a continuously variable electronic low-pass filter that is adjustable between 70Hz and 100Hz; variable input sensitivity; and a bass boost that provides for adjustments between +3dB and -6dB. The BassLink system even includes a remote level control that makes adjusting bass output on the fly easy. First, set the input-sensitivity control on the amplifier for the maximum output level. Then mount the control somewhere close and use its simple rotating knob to dial up just the right amount of bass for whatever music you’re playing.

BASSLINK Bass for any size space - Image

Bass for any size space

BassLink was engineered for high output and deep bass from a smaller footprint than competing powered subwoofer solutions. The BassLink system can be mounted either vertically or horizontally, giving you more flexibility in choosing where to install it. In fact, the BassLink system is so compact that it requires only three quarters of a cubic foot (0.02 cubic meters) of trunk space. That leaves plenty of room for other important things, like golf clubs.

Specs & Downloads

Item# BASSLINK

Description

A subwoofer system is more than just a great speaker. Great bass requires an amplifier, an enclosure and a speaker to work together as a system. Because all the components in BassLink were designed to go together, each component was optimized for its particular job. The result is great bass in a cool-looking, space-saving package.<CRLF>Thanks to the Class D amplification included in BassLink, more of the power the amplifier extracts from the car’s charging system is converted into output to the speaker, and less is wasted as heat. That’s a big deal in today’s cars, which include all kinds of powered accessories.

General Specifications

Type
10" Self-Amplified Subwoofer System
Amplifier Power
200W RMS
Fuse
25A
Maximum Current Draw
12A
Quiescent Current Draw
<800mA
Input Sensitivity
50mV – 4V Line-Level Input 1V – 16V Universal Interface

Audio Specifications

Crossover Frequency
50Hz – 120Hz
Crossover Slope
12dB/octave
Bass Boost
–6 to +3 dB @ 40Hz

Dimensions

Height (in)
8-1/2"
Length (in)
14-1/2"
Width (in)
12-1/2"
