THRILL Multi-FX LED
$73.00 Price reduced from $162.06 to Save 55%
0.0 (0)
Write a review
THRILL Multi-FX LED MARTIN HERITAGE - Image

MARTIN HERITAGE

For 30 years, the Martin brand has been the leading choice of professional lighting designers, rental and production houses, and installers across the global architectural, commercial, and entertainment lighting markets. With the THRILL series, Martin is bringing its industry-leading excellence in dynamic light and visual effects to new audiences by providing more affordable and easier-to-use models, while still retaining a die-hard dedication to quality and our customers.

THRILL Multi-FX LED LET THE MUSIC DO THE TALKING - Image

LET THE MUSIC DO THE TALKING

THRILL Multi-FX LED is a perfect fit for musicians, DJs and home enthusiasts who want to spend their time focused on entertaining, rather than setting up and controlling complex equipment. For a literal plug and play experience, THRILL Multi-FX LED features a built-in microphone—simply turn on the sound trigger and let the beat of your music THRILL your audience. In addition, the fixture has eight, professionally-programmed shows that can be run either standalone or with daisy-chained units—no lighting experience required.

THRILL Multi-FX LED THE VALUE OF HYBRID - Image

THE VALUE OF HYBRID

The THRILL Multi-FX LED is a terrific value for money combining three energizing effects into one fixture. This is truly a Swiss army knife of lighting extravaganza. Perfect for performers who want to outfit their show with high intensity, stunning lighting effects, but have limited space for mounting and transporting equipment.

Features

THRILL Multi-FX LED PORTABLE AND LIGHTWEIGHT - Image

PORTABLE AND LIGHTWEIGHT

Its portable and lightweight design makes the THRILL Multi-FX LED ideal for on-the-go entertainers and small venues working with limited stage footprints. It’s also perfect for rental companies who want to supply lighting solutions for smaller setups that do not have the budget for professional lighting operators.

THRILL Multi-FX LED HUNDREDS OF LASER BEAMS - Image

HUNDREDS OF LASER BEAMS

The THRILL Multi-FX LED has an impressive laser effect engine consisting of independently controlled red and green lasers. Hundreds of laser beams project simultaneously, washing over the crowd, exciting the eye. The lasers have pre-defined shapes, patterns and movements which can be easily customized to suit your entertainment style.

THRILL Multi-FX LED SIMPLICITY IN SETUP AND CONTROL - Image

SIMPLICITY IN SETUP AND CONTROL

The THRILL Multi-FX LED is easy to control whether used as a standalone fixture or as part of a complete DMX control system. The THRILL Multi-FX LED can be easily manipulated via any standard DMX controller such as a Martin M-Touch and free M-PC control software. In addition, you can daisy chain up to 32 fixtures in a master/slave configuration.

THRILL Multi-FX LED NO COMPLEX PROGRAMMING - Image

NO COMPLEX PROGRAMMING

Want to customize your live set and take things further than the 8 preset shows? No problem. The THRILL Multi-FX LED features several macros on each channel that you can use as a baseline in your programming. And when you need a break from controlling the lighting, easily put the fixture into the Integrated Show Control Mode via DMX, and let pre-programmed looks and a sound trigger do the work for you.

Specs & Downloads

Item# 000000000090280117

Description

Hybrid effect light—multibeam, laser, strobe

THRILL Multi-FX LED is a 3-in-1 LED light fixture that is guaranteed to make your show larger than life. Equipped with laser, strobe, and rotating multibeam effects with sharp optics and super bright output, THRILL Multi-FX LED has an impressive number of tricks up its sleeve for a wide variety of dazzling looks. Designed to boost the wow factor and energize crowds with high-speed, eye-catching mid-air looks and ultra-sharp laser effects, THRILL Multi-FX LED is ideal for creating dramatic atmospheres at a variety of entertainment and club environments, including DJ and band performances, wedding parties, and corporate shows.

General Specifications

Mounting
Adjustable bracket, surface or truss mount
Mounting points
Bracket for single rigging clamp, M12 or ½”
Orientation
Any (respecting laser precautions)
Location
Indoor, dry locations only, overhead use only
Minimum distance above floor level
3 m (9.8 ft.)
Minimum distance from persons
3 m (9.8 ft.)
Cooling
Passive
Maximum ambient temperature (Ta max.)
40° C (104° F)
Minimum ambient temperature (Ta min.)
0° C (32° F)
Total heat dissipation (calculated, +/- 10% at full intensity, full white)
225 BTU/hr.
Approvals - EU safety
EN 60598-1, EN 60598-2-17, EN 60825-1, EN 62031, EN 6247-1, EN 6247-2-13, EN 62493 , IEC TR 62471-2,
Approvals - EU EMC
EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547
Approvals - Australia/NZ (pending)
RCM

Dimensions

Length
246 mm (9.7 in.)
Length with hanging bracket
307 (12.1 in.)
Width
234 mm (9.3 in.)
Width with hanging bracket
234 mm (9.3 in.)
Height
246 mm (9.7 in.)
Height with hanging bracket
288 mm (11.3 in.)
Height with hanging bracket
286 mm (11.3 in.)
Weight
4.5 kg (9.8 lbs.)

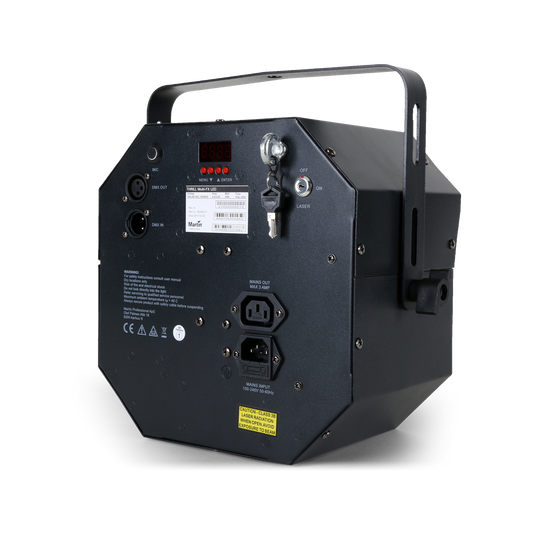

Control and Connection Specifications

AC power in/thru
IEC male inlet/female connector, C14/C13
DMX data in/thru
3-pin XLR
Control options
DMX, stand-alone
Safety lockout switch, laser
Keyed switch on/off operation
DMX channels
2/16
Stand-alone trigger options
Sound-trigger, auto-run
User interface
Control panel with LED display
DMX compliance
ANSI E1.11 - USITT DMX512-A

Design

Housing
Steel
Ingress protection
IP20

Powering Interface

AC power
100-240 V nominal, 50/60 Hz
Fuse
F 3 AL, 250 V
Typical power consumption
35 W
Maximum number of fixtures on AC power throughput, 100-130 V
6 x THRILL Multi-FX LED or 3 A
Maximum number of fixtures on AC power throughput, 220-240 V
10 x THRILL Multi-FX LED or 3 A
Typical Power and Current
0.5 A, 35 W (110 V, 60 Hz) ; 0.3 A, 35 W (230 V, 50 Hz)
110 V, 60 Hz
0.5 A, 35 W
230 V, 50 Hz
0.3 A, 35 W
