- New
-





Low Profile
Minimally disrupts the table surface

Dual Element Cardiod Microphone
180° dual element configuration

Screw Terminals
Greatly simplify installation
Features

Mute Switch
Change talk and mute state by simply touching the mic

RGB LED Ring Indicators
Red, green, and blue LEDs provide clear visual cues to indicate current talk and mute state

RF Interference Suppression
Avoid interference from mobile phones and laptops

Elegant Design
Complements any room interior
Specs & Downloads
Item# 5095184-00-LS
Description
Easy to install with intuitive user controls

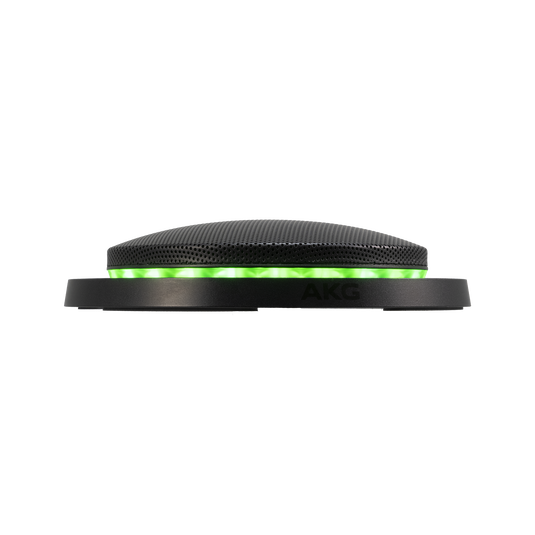

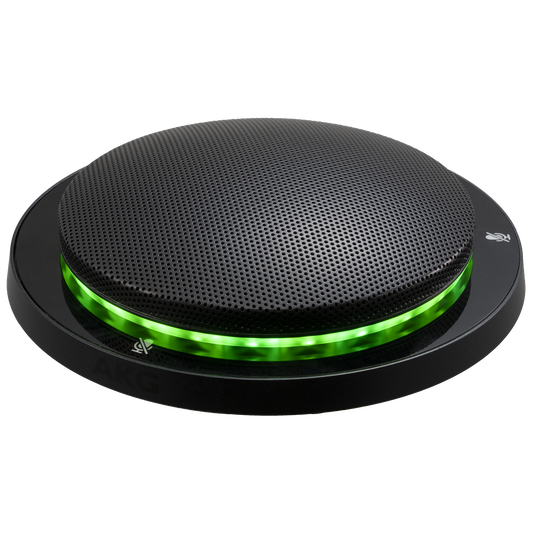

The AKG CBL201 is easy to install with intuitive user controls. Leveraging AKG’s vast portfolio of innovation, the new CBL Series by AKG is a family of low-profile boundary layer microphones, available in multiple form factors and mic coverage patterns to accommodate critical applications including conference rooms and meeting spaces. Featuring intuitive user controls for talk/mute, elegant design aesthetics with LEDs, and screw terminals for mics and I/O, the CBL Series is easy to install, easy to use, easy on the eyes and makes meetings sound great.
General Specifications
- Description
- AKG CBL Series Professional Boundary Layer Microphones, Dual-Element
- Model
- CBL201-B
- Polar Pattern
- Cardioid
- Minimum Current
- 400 µA
- Maximum Current
- 600 µA
- Typical Current
- 500 µA
- Maximum SPL
- 120 dB
- LED
- RGB ring LED to indicate mic status
Dimensions
- Height
- 28.4mm (1.1”)
- Width
- 128.5mm (5.1”)
Design
- Finish
- Black
Powering Input
- Input Max Voltage
- 24V (+10%)
- Input Min Voltage
- 3.3V (-10%)
- Input Resistance
- 100 kΩ
Audio Output
- Output Voltage
- 3.3V (±10%)
- Output Max Current
- 500 µA (±10%)
Powering Interface
- Min Supply Voltage
- 24V -10% (phantom power)
- Max Supply Voltage
- 48V -10% (phantom power)
- Output Impedance
- Maximum 200 Ω
Application
Conferencing
Device
Boundary Layer Microphone
