dbx

RTA-M

Details
Item# DBXRTA-M
Variations
Product Actions
Add to cart options
$99.9599.95 each
Promotions

Free Ground Shipping on this Item

Availability:

In Stock
UPS-BOX Order within 48 hrs 51 mins with Free Ground Shipping and receive by Wed, Aug 21
Your zip code 20149 edit | Want it faster?

Omni-directional Polar Pattern

The RTA-M features an omni-direction polar pattern ideal for use the the dbx DriveRack PA, PA+ and 260. Perfect for measuring pink noise that is sent through PA speakers and optimizing the EQ settings for any room.

Back Electret Condenser Element

With its back electret condenser element dbx RTA-M for offers very respectable frequency response and solid, road-worthy construction at an exceptionally affordable price.

20Hz - 20kHz Frequency Range

The RTA-M's 20Hz - 20kHz frequency range ensues accurate "pinking"/real-time analysis of your audio.

Designed to work with the DBX DriveRack Loudspeaker Management Systems

The RTA-M was specifically engineered to work with dbx DriveRack Loudspeaker Management Systems for feedback elimination in venues and studios.

Phantom Power 9V-52VDC

The RTA-M runs on 15 volts of phantom power and produces a flat response from its omnidirectional pattern. Perfectly suited for live sound or contract installs.

General Specifications

Element Back Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 20 Hz ~ 20,000Hz
Impedance 250 Ω ± 30% (@ 1KHz)
Operating Voltage 9~52V DC Phantom Power
Sensitivity -63 dB ± 3 dB (0 dB=1V/microbar 1,000 Hz indicated by open circuit)

Dimensions

Length 145 mm
Diameter 10 mm (mic head)

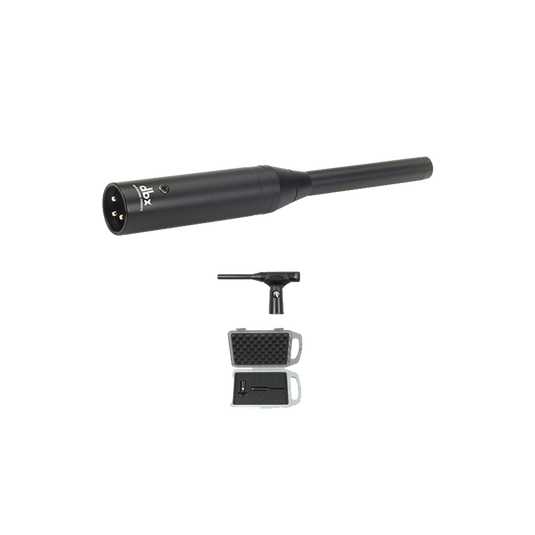

  • 1 x dbxRTA-M
  • 1 x Microphone Clip
  • 1 x Carry Case
The optional RTA-M real time audio analyzing mic is the perfect accessory tool for the DriveRack PA series (PA, PX, PA+, PA2) and 260. Used in conjunction with the System Setup Wizard and Auto EQ Wizard the RTA-M is ideal for optimizing the sound quality of even the most difficult of acoustic environments. The RTA-M is an omni-directional, flat frequency measurement microphone specially designed for the Driverack series to pick up all frequencies from 20 Hz to 20 kHz , ensuring accurate "pinking"/real-time analysis of your audio. It runs on phantom power (supplied by the Driverack units) and comes with a clip and case.
