HELICAL
$289.04 Price reduced from $555.00 to Save 48%

Circular polarized antenna design

For high directionality and strong signal reception

Works as transmitting and receiving antenna

For wireless microphones and in-ear monitoring

9dB antenna gain

For long distance applications

Features

HELICAL Operates in a wide frequency range - Image

Operates in a wide frequency range

470 to 740 MHz for universal use worldwide

HELICAL Foldable from 12" extended to 3" compressed - Image

Foldable from 12" extended to 3" compressed

To easily fit inside a rack drawer

Specs & Downloads

Item# 3009H00210

Description

Spin doctor

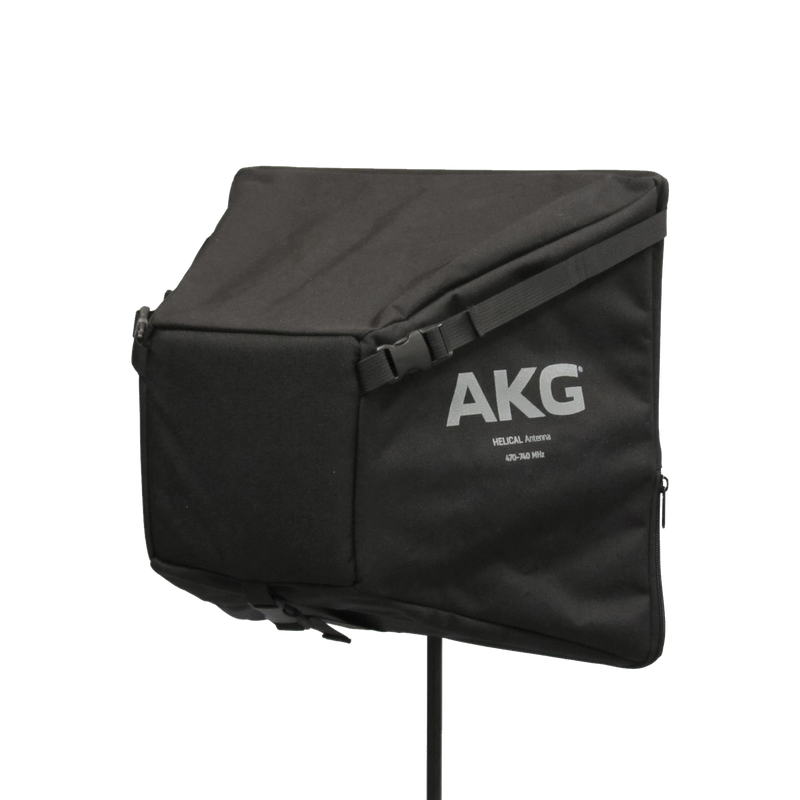

The HELICAL antenna is a passive circular polarized directional wide-band UHF antenna which can be used as a transmitting or receiving antenna for wireless microphones and in-ear monitoring systems. It operates in a frequency range from 470 to 740 MHz and provides an antenna gain of 9dB. This circular polarized HELICAL antenna is specially designed for tour sound, sports and broadcast applications where long range FOH positions of many hundreds of feet often require a high gain. With the included universal thread adapter it can be mounted on floor stands with both 3/8" or 5/8" screws. The HELICAL antenna comes with a durable, water resistant nylon cover which also helps to compress the antenna to easily fit inside a rack drawer.

General Specifications

Switching bandwidth (from/to)
470 - 740 MHz
Antenna gain
9 dBi
Covering angle
63 Grad

Dimensions

Length
305 mm
Height
355 mm
Width
355 mm
Net Weight
1200 g

Antenna Output

Amount
1
Type
N
Gender
Female
Recommended load impedance
50 Ohms

Design

Body
nylon
Finish
black
