Ui24R
$1,279.00

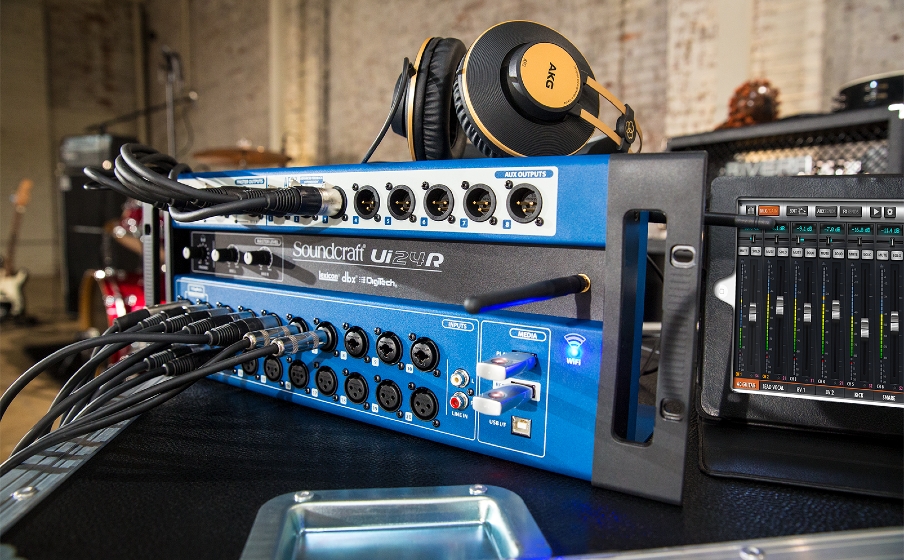

Ui24R More ways to connect - Image

More ways to connect

24 channels of I/O, including 10 combo 1/4”-TRS/XLR, 10 XLR, 2 line, and 2 channels of digital playback for a total of 24 simultaneous inputs

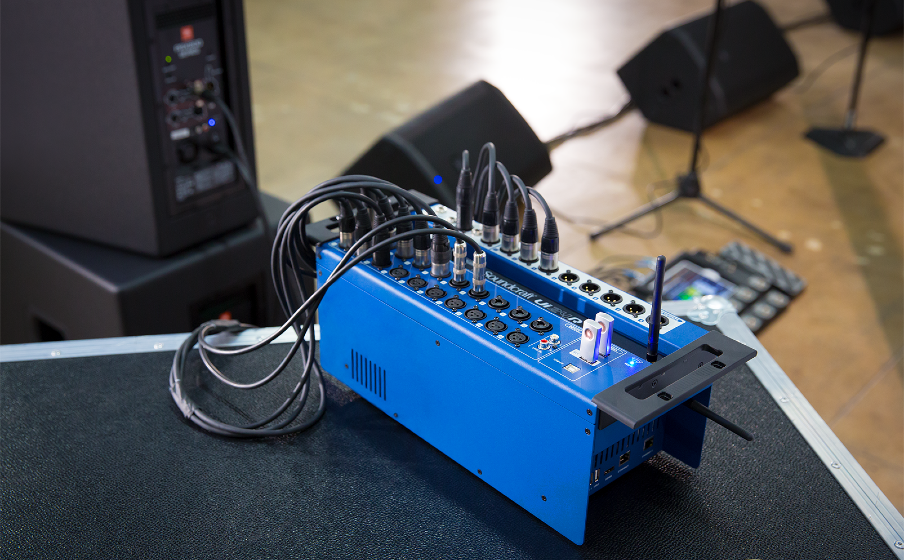

Ui24R More ways to control - Image

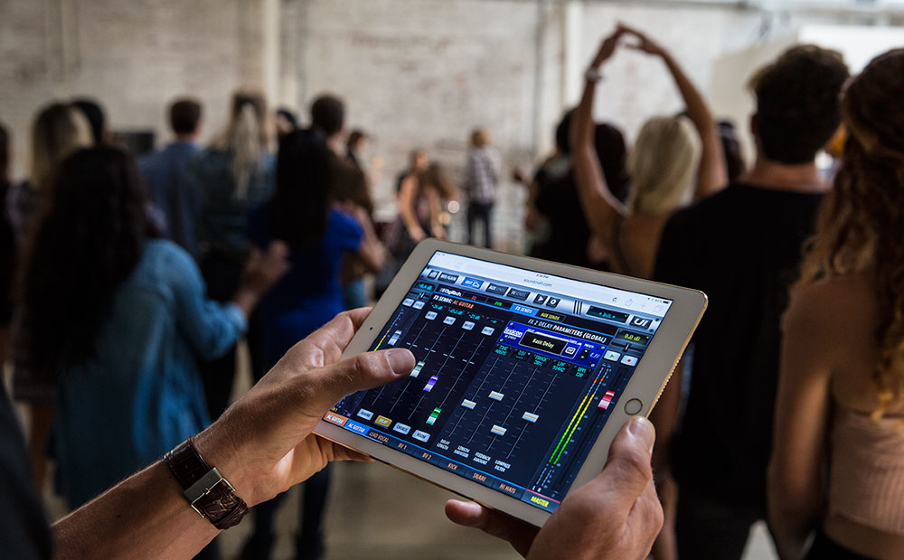

More ways to control

Onboard dual-band WiFi allows up to 10 devices to control Ui24R from iOS, Android, Windows, Mac OS and Linux browsers without installing apps

Ui24R Integrates the best of HARMAN - Image

Integrates the best of HARMAN

Warm Studer-designed preamps, lush Lexicon reverbs, dbx feedback suppression, cutting-edge DigiTech amp modeling, and more

Features

Ui24R Dual-path multi-track recording - Image

Dual-path multi-track recording

Multi-track recording of all 22 inputs and the stereo mix, directly to a USB storage drive and a connected computer

Ui24R Connected PA compatible - Image

Connected PA compatible

Experience enhanced integration with the HARMAN Connected PA app and compatible products

Specs & Downloads

Item# 000000000005076585

Description

More freedom

The Soundcraft Ui24R is a complete, rack-mountable, digital mixing and multi-track recording system that delivers flexible I/O, pristine sound quality, intuitive wireless control, and roadworthy reliability—all in a streamlined design. The system can double as a stagebox and can be controlled by up to 10 devices via Ethernet or built-in dual-band Wi-Fi, making it possible to control mixing and multi-track recording wirelessly from anywhere in the venue. With renowned HARMAN signal processing, Studer-designed preamps and much more—from the studio to the stage, Soundcraft Ui24R is the ultimate system for artists, venues and engineers who need to save space and deliver superior sound. The Ui24R mixer is the heart of a HARMAN Connected PA system. Connected PA delivers seamless plug-and-play operation with a variety of HARMAN equipment and enables you to control your entire live sound system with one app. Products within the Connected PA system self-identify and retain presets for effortless setup, and wizards help you quickly optimize volume, configuration settings and sound quality. Compatible products include JBL PRX800 loudspeakers, dbx Di1 direct boxes, AKG P5i microphones and the MDAi dynamic microphone adapter.

General Specifications

Mic Preamps
20 Studer designed (10 combi, 10 XLR)
Line Inputs
2 (-10 unbalanced)
Master Outputs
2 (+4 XLR, with individual volume pots)
Headphone Outputs
2 (with shared volume pot)
AUX Outputs
8 (+4 XLR with 32 band graphic and dbx AFS2 Feedback Suppression)
USB PLAY
USB A port
USB RED
USB A port
USB I/F
USB B port
USB 1
USB A, for controllers (such as a computer mouse)
USB 2
USB A, for software update installation
Footswitch
¼” for closure pedal event trigger
Ethernet
RJ45, for LAN connections
Frequency Response
20Hz-20kHz +/- 0.5 dB
THD
Mic input (Min gain to bus) @ 1kHz <0.005% ; Mic input (Max gain to bus) @ 1kHz <0.008%
