EFX8
$509.00

Features

EFX8 Programmable 24-bit  Lexicon® effects. - Image

Programmable 24-bit Lexicon® effects.

Dedicated FX bus featuring Industry standard reverbs and delay. The effects engine features 32 presets that are storable and recallable.

EFX8 Gold-plated XLR connectors. - Image

Gold-plated XLR connectors.

Professional connectivity with the highest possible conductivity. Gold-plated connectors ensures the best possible sound quality across the console.

EFX8 Inserts on every mono input. - Image

Inserts on every mono input.

Inserts on every input assures maximum compatibility with outboard audio processors.

EFX8 Soundcraft Mic Pres - Image

Soundcraft Mic Pres

Illustrious Sondcraft sound thanks to the GB30 mic pre.

EFX8 Peak meters on each input. - Image

Peak meters on each input.

LED peak meters per channel allows instant visibility of overloading channels.

Specs & Downloads

Item# E535.000000US

Description

Big audio. Small price.

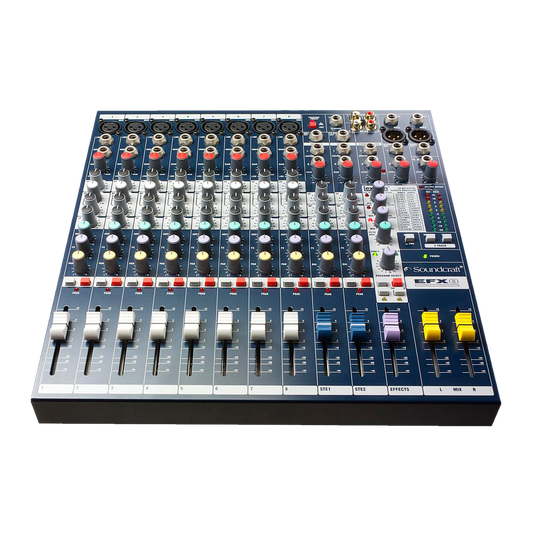

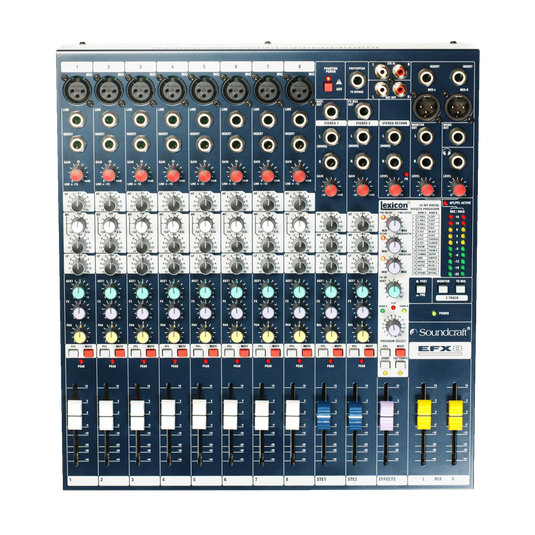

The emphasis with the Soundcraft EFX is very firmly on build quality and audio performance, with an easy to understand control surface in line with the Soundcraft professional range. The Soundcraft EFX uses the highly-transparent GB30 Mic amp designed by Graham Blythe. The Soundcraft EFX offers a configurable aux send, XLR and ¼" metal jack connector sockets, RCA phono inputs and outputs, 3-band EQ, inserts, ten-segment LED output metering and a headphone output. The Effects section fits neatly into the mixers compact framework with an effects send on each channel. There are 32 effects to choose from with a tap tempo function, 3 effects parameter controls and a user effects setting store facility. An effects channel level clip LED and Mute function gives the user even more flexibility. The Soundcraft EFX will find itself in many applications including live music, recording, houses of worship and multi-speaker installations.

General Specifications

Power Consumption
<35w

Audio Specifications

Frequency Response
Mic input to line output
T.H.D
Mic sensitivity -30dBu, +14dBu @ mix output 0.02% @ 1kHz
Noise
-126.5dBu (150 Ohm source)
Mic Inputs
+15dBu max
Line Inputs
+30dBu max
Stereo Inputs
+30dBu max
Mix Outputs
+20dBu max
Mic Input Impedence
2 kOhms
Line Input Impedence
10 kOhms
Stereo Input Impedence
65 kOhms (stereo), 35kOhms (mono)
EQ (Mono inputs) HF:
12Hz, +/-15dBu
EQ (Mono inputs) MF:
(swept) 150Hz - 3.5Khz, +/- 15dBu, Q=0.8
EQ (Mono inputs) LF:
80Hz, +/-15dBu
EQ (Stereo inputs) HF:
12Hz, +/-15dBu
EQ (Stereo inputs) MF:
720Hz, +/-15dBu
EQ (Stereo inputs) LF:
80Hz, +/-15dBu

Dimensions

Height
13.0 in (330 mm(
Width
3.6 in (91 mm)
Depth
14.3 in (362 mm)
Weight
10.1 lb (4.6 kg)
