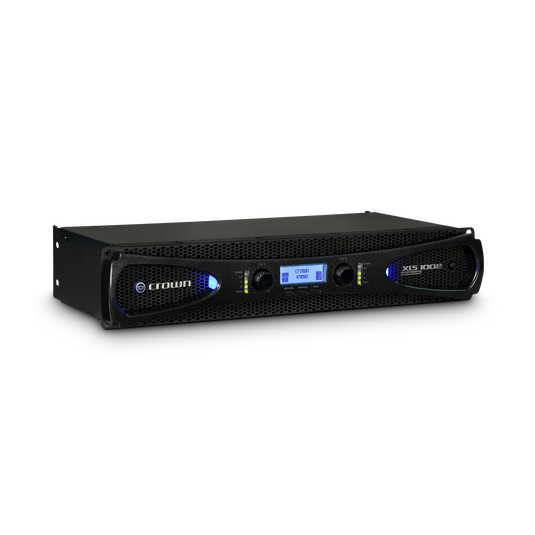

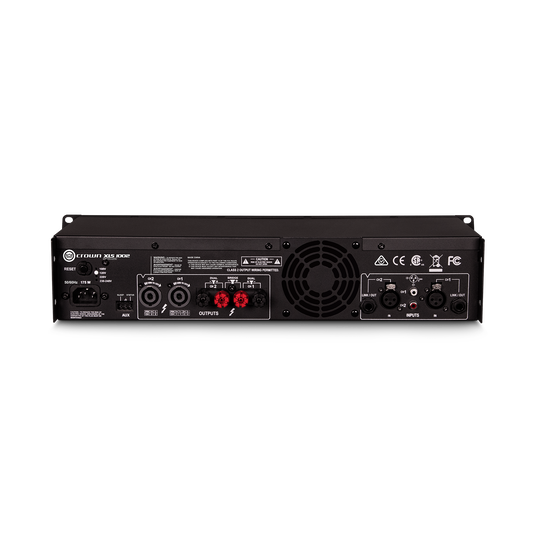

XLS 1002

Item# NXLS1002-0-US
  • Select Color
    • Black
Product Actions
Add to cart options
$299.00299.0 each

In Stock

Your zip code 20149 edit | Want it faster?

Additional Information
XLS DriveCore 2 power amps are ultra-efficient and guarantee a clean, undistorted signal assuring that you will be heard as you deliver a powerful, pure sound for any venue.
At a Glance:
  • Weighs less than 11 lb (5 kg)
  • Increased lighting functionality
  • Peakx™ Limiters
  • Efficient forced-air fans
The next generation of XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS is ultra-efficient with Crown’s patented DriveCore technology and can drive 2400W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.
Product Features:
  • Weighs less than 11 lb (5 kg)
    Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb (5 kg)
  • Increased lighting functionality
    Turn off all LED indicators except clip and thermal to reduce distraction in dark venues
  • Peakx™ Limiters
    Provide maximum output while protecting your speakers
  • Efficient forced-air fans
    Prevent excessive thermal buildup
Manuals & Downloads:
General Specifications:
Rated Power Output
350W Stereo (per Channel at 4Ω)
.775Vrms or 1.4Vrms
Frequency Response
+0dB, -1dB (at 1W, 20Hz to 20kHz)
Signal to Noise Ratio
>97dB (rated as dBr to full rated 8Ω power output; A-Weighted)
Total Harmonic Distortion (THD)
< 0.5%
Intermodulation Distortion (IMD)
=/ < 0.3% (60 Hz and 7 kHz at 4:1 from full rated output to –30 dB)
Damping Factor (8ohms), 10 Hz-400 Hz
> 200
Crosstalk (below rated 8Ω power)
>85 dB at 1 kHz ; >55 dB dB at 20 kHz
19 in (48.26 cm)
3.5 in (8.9 cm)
7.7 in (19.6 cm)
Net Weight
8.6 lbs (3.9 kg)
Shipping Weight
13.6 lbs (6.2 kg)
