• New
JBL

JBL One Series 104 (Pair)

Details
Item# J104SET-US
Variations
Product Actions
Add to cart options
$129.00129.0 each
Promotions

Free Ground Shipping on this Item

Availability:

In Stock

UPS-BOX Order within 05 hrs 49 mins with Free Ground Shipping and receive by Wed, Sep 18
Your zip code 20149 edit | Want it faster?

General Specifications

Low Frequency Transducer 4.5 in (118 mm)
High Frequency Transducer 0.75 in (19 mm), soft dome
Crossover 1725 Hz, 1st order
Input Sensitivity (-10 dBV Input) 87 dB / 1 m
Power Amp 60 W (30 W each speaker), Class D
Maximum Continuous SPL 89 dB
Maximum Peak SPL 102 dB
Maximum SPL, Momentary Peak 104 dB
Maximum Peak Input Level (-10 dBV / +4 dBu): +6 dBV / +20.3 dBu
Frequency Range 60 Hz – 20 kHz
System Distortion Criteria <10% THD at maximum output with full compressor / limiter engagement
Electrical Distortion Criteria <0.2%THD @ 1 kHz, 2.83 VRMS output; <1% THD @ 1 kHz, full rated output
Signal to Noise Ratio 75 dBA (A-Weighted), 70 dBr (unweighted), relative to 2.83 VRMS output on HF
Coverage (Horizontal x Vertical) 120º x 80º

Dimensions

Height 9.72 in (247 mm)
Width 6.02 in (153 mm)
Depth 4.88 in (124 mm)
Net Weight Master Monitor = 4.54 lb (2.06 kg); Slave Monitor = 3.81 lb (1.73 kg)

Design

Enclosure Type Ported
Enclosure Material ABS with metal grille
Enclosure Finish Matte black acrylic paint

Audio Output

Output Connectors 1 x 3.5 mm (1/8") stereo headphone with auto speaker mute

Audio Input

Input Connectors 2 x 1/4-inch (6.5 mm) balanced (+4 dBu); 2 x RCA (-10 dBV); 1 x 1/8-inch (3.5 mm) unbalanced (-10 dBV)

Powering Interface

AC Input Voltage 100 – 240 VAC (± 10%), 50/60 Hz
Current Draw 85 watts
Electrical Current Draw (W) Idle 100 / 240 VAC 3.52 / 3.70
Electrical Current Draw (W) Max Power 100 / 240 VAC 80 / 80
Electrical Current Draw (W) Low Power Standby Mode 100 / 240 VAC 0.34 / 0.46
  • 1 x 104 Master Monitor
  • 1 x 104 Extension Monitor
  • 1 x Extension monitor connection wire (2-conductor, 2 meters)
  • 1 x Audio Connection Cable: 3.5 mm (1/8") mini TRS stereo plug to dual RCA plug
  • 1 x Power Cord
  • 1 x Quick setup guide

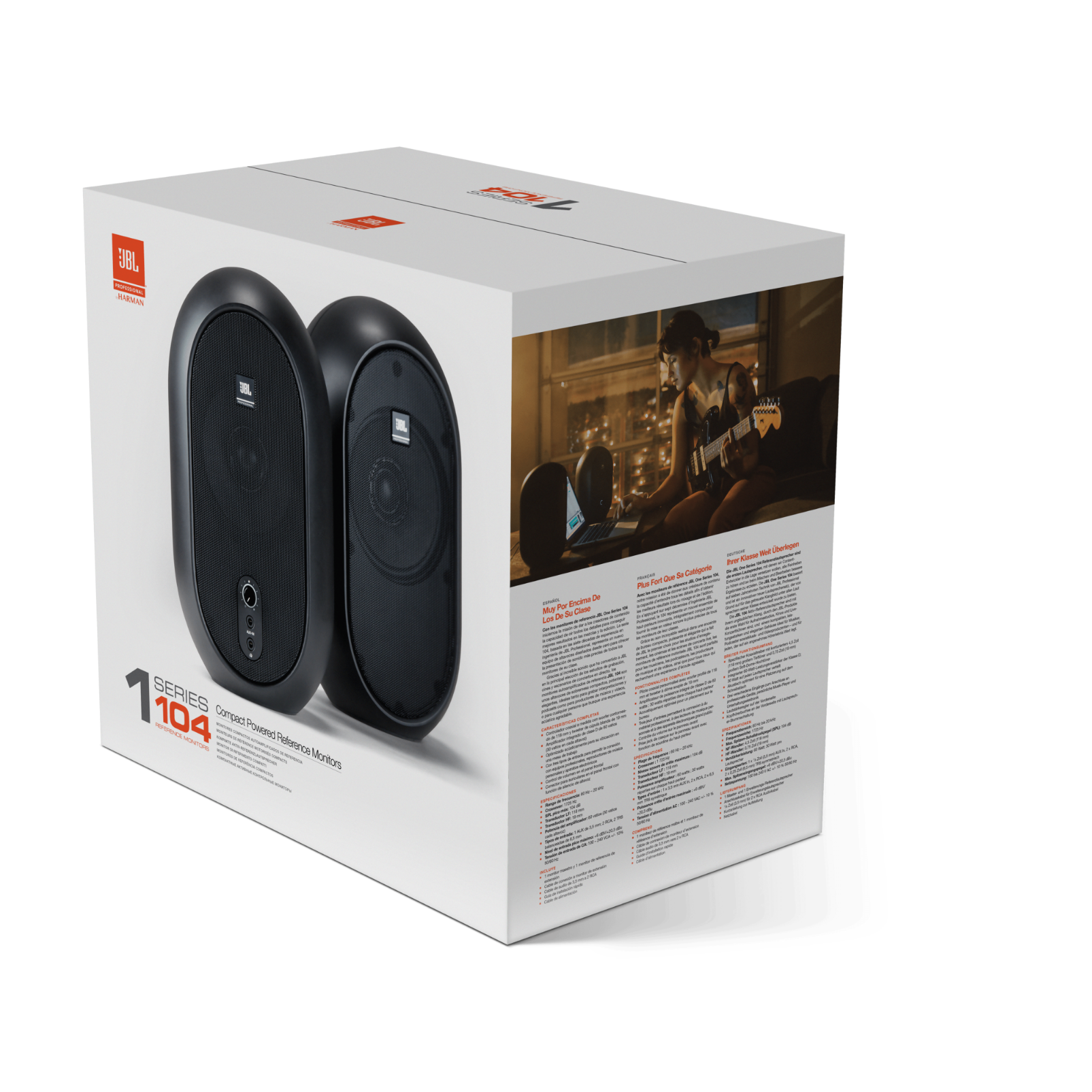

whats in box
JBL 104 compact, full-range, powered reference monitors draw from seven decades of JBL Professional engineering to deliver the truest, most accurate sonic presentation of any monitor in their class. Ideal for home recording enthusiasts, podcasters and video producers, as well as professionals seeking accurate portable reference monitors, JBL 104s combine powerful 4.5-inch (118 mm) low-frequency drivers with coaxial .75- inch (19 mm) soft-dome tweeters, potent 60-watt amplification and innovative acoustic design to provide exceptional imaging, neutral frequency response and crisp detail in our smallest, most affordable reference monitor yet. With their sleek, elegant design and compact form factor, they’ll make a stunning statement in any home or pro studio while conserving valuable work space. Creative professionals and music lovers alike can count on the JBL 104 to deliver a reliable sonic reference and a truly enjoyable listening experience, all at an attractive price point.
