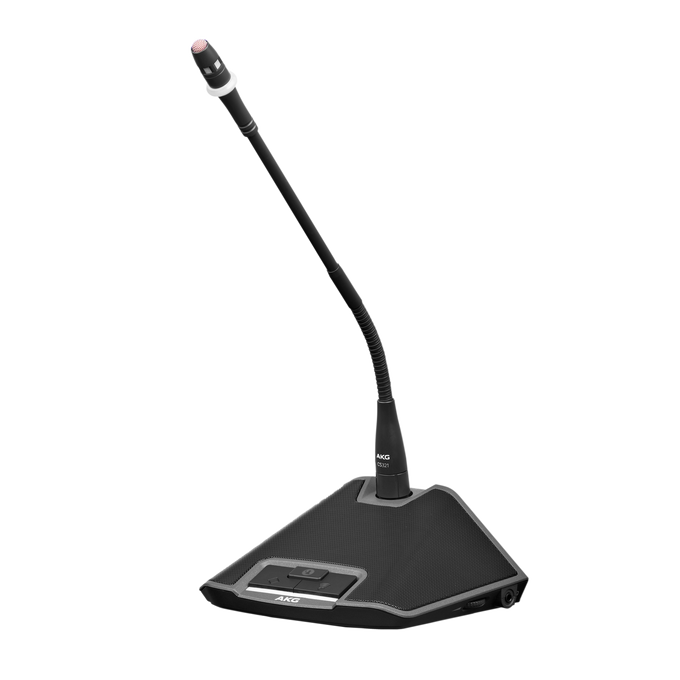

CS3 CU 50
$395.00

Chairman functions with "Priority" and "Next in line" buttons

Give full control over the entire conference/system

Interchangeable microphones

Maximum flexibility for any type of conference situation

Built in speaker

For near field reinforcement

Features

CS3 CU 50 Two separate 3.5 mm stereo jacks - Image

Two separate 3.5 mm stereo jacks

To connect headphones for up to two delegates

CS3 CU 50 Plug 'n' Play set - Image

Plug 'n' Play set

Includes all components for a quick set-up

Specs & Downloads

Item# 3361H00240

Description

Get in control

The CS3 CU chairman unit is a microphone station with two operating modes. In “priority call” mode, the user can manually mute all connected delegate stations. In “next in line” mode the CS3 CU automatically activates the next delegate station in the waiting list. The station provides a built in speaker and 2 x 3.5 mm stereo jacks to connect headphones for up to two delegates. The CS3 CU comes with a robust interface connector, which makes it easy to interchange the stations microphone. The detachable microphone comes in two choices - the CS321 cardioid condenser capsule on a 30 cm long gooseneck and the 50 cm long CS521. The CS3 CU set-box contains a 2 m long Plug ‘n’ Play connector cable as well as the preferred microphone choice.

General Specifications

Power Supply
DC24V Supplied by the Base Unit
Power Consumption
3W
Loudspeaker Power
2W
SNR
>80dB
Frequency Response
50Hz-20kHz
Intercommunication
DIN 8-pole
Headphone Output
9dBu, 8-32ohm, 3.5mm
Crosstalk Attenuation
>80dB
Harmonic Distortion
<0.1%
Operating Temperature
0°C to 40°C at 95% relative humidity (non-condensing)
