Features
Delegate station with PTT button intuitive and easy to use
For maximum flexibility for any type of conference situation
Interchangeable microphones
For near field reinforcement
Built in speaker
For up to two delegates
Two separate 3.5 mm stereo jacks to connect headphones
For a quick set-up
Plug 'n' Play set includes all components
Specs & Downloads
Item# 3361H00210
Description
Just talk

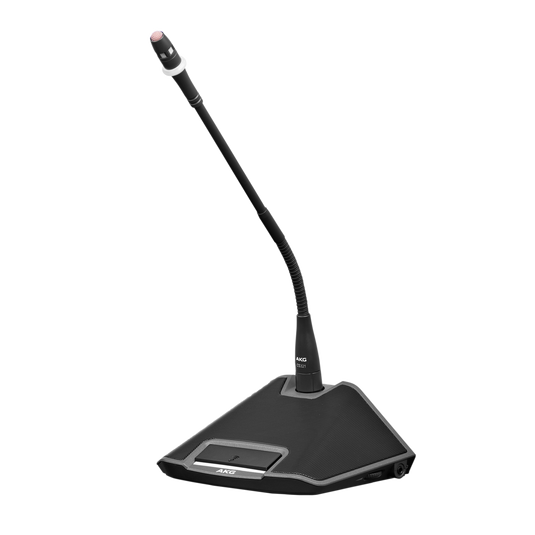

The CS3 DU microphone station is the basic delegate unit for the CS5 conference systems. It provides both an integrated loudspeaker as well as two 3.5 mm stereo headphone outputs and could be used for up to 2 delegates. Depending on the selected operating mode, the PTT key enables the speaker to directly switch on their microphone or to enter the system waiting list. The CS3 DU comes with a robust interface connector, which makes it easy to interchange the stations microphone. The detachable microphone comes in two choices - the CS321 cardioid condenser capsule on a 30 cm long gooseneck and the 50 cm long CS521. The CS3 DU set-box contains a 2 m long Plug 'n' Play connector cable as well as the preferred microphone choice.
General Specifications
- Power Supply
- DC24V Supplied by the Base Unit
- Power Consumption
- 3W
- Loudspeaker Power
- 2W
- SNR
- >80dB
- Frequency Response
- 50Hz – 20kHz
- Intercommunication
- DIN 8-pole
- Headphone Output
- 9dBu, 8-32ohm, 3.5mm
- Crosstalk Attenuation
- >80dB
- Harmonic Distortion
- <0.1%
- Operating Temperature
- 0°C to 40°C at 95% relative humidity (non-condensing)
Dimensions
- Length
- 170 mm
- Width
- 143 mm
- Height
- 63 mm
- Weight
- 1kg
