GN15
$215.00
0.0 (0)
Write a review
GN15 Discreet, screw-on mounting module - Image

Discreet, screw-on mounting module

For permanent installations

GN15 Detachable phantom power adapter - Image

Detachable phantom power adapter

Eliminates time-consuming soldering work

GN15 Special mounting accessories included - Image

Special mounting accessories included

For quick and hassle-free installation

Features

GN15 Extremely rugged gooseneck construction - Image

Extremely rugged gooseneck construction

For an extra-long life of reliability and stability

GN15 Highly reliable contacts for capsule modules - Image

Highly reliable contacts for capsule modules

Prevent contact problems and ensure extra-long life

Specs & Downloads

Item# 2765H00010

Description

Proven reliability

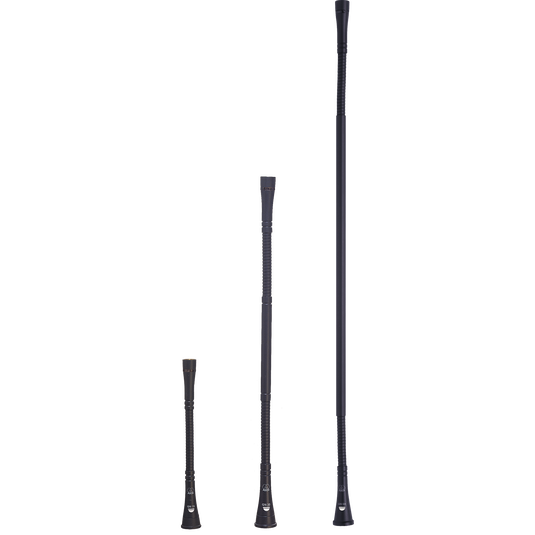

The DAM Series GN gooseneck modules for permanent screw-on installation are available in three different lengths: 15cm (6in), 30cm (12in), 50cm (20in). Except for the GN30 OC with unterminated cable ends, all come with an in-line XLR phantom power adapter with integrated 250Hz bass rolloff, LED ring and ON/OFF jumper. A mini XLR connector eliminates the need for large holes in the furniture or time-consuming soldering work during installation. The gooseneck module fits all DAM Series capsules, CK31, CK32, CK33, CK47 and CK80, via highly reliable contacts.

General Specifications

Audio frequency bandwidth
20 - 20000 Hz
Bass cut filter
250 Hz
Recommended load impedance
2000 Ohms

Dimensions

Diameter
20 mm

Design

Finish
matte dark gray

Audio Output

Type
Balanced XLR
Gender
Male
Contacts
3-pin

Powering Interface

Voltage
9 to 52 V
Current
3 mA
