Features
30cm (12in) High-performance modular gooseneck module - DAM Series
For remote control of integrated LED ring
Extra-large LED ring indicator
Provides enhanced visible MIC ON
Switchable bass rolloff
Extremely rugged gooseneck construction
Highly reliable contacts for capsule modules
Specs & Downloads
Item# 2765H00400
Description
Proven reliability

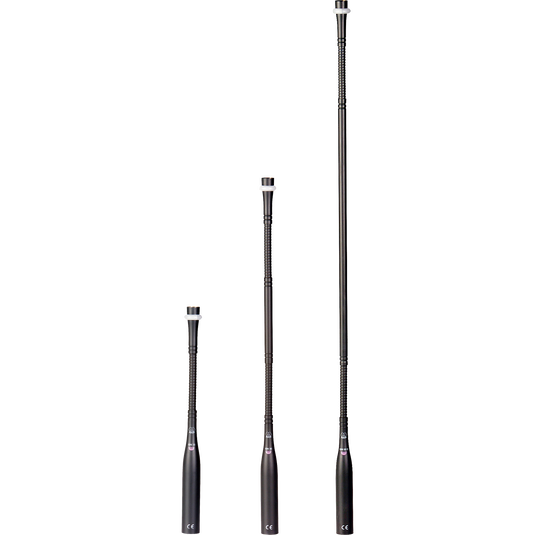

The GN E 5Pin high-performance gooseneck modules for fixed and mobile installation provide a five-pin XLR connector that allows the audio signal and the control voltage for the LED ring to be fed separately. Thus, the LED ring can be activated remotely by, for example, a logic output from any automatic mixer. The LED ring is extra-large for enhanced visibility. The DAM Series GN E five-pin gooseneck modules are available in three different lengths: 15cm (6in), 30cm (12in) and 50cm (20in). The gooseneck module fits all DAM Series capsules, CK31, CK32, CK33, CK47 and CK80, via highly reliable contacts.
General Specifications
- Audio frequency bandwidth
- 20 - 20000 Hz
- Recommended load impedance
- 6000 Ohms
Dimensions
- Height
- 1490 mm
- Diameter
- 20 mm
Design
- Finish
- matte dark gray
Audio Output
- Type
- Balanced XLR
- Gender
- Male
- Contacts
- 3-pin
Powering Interface
- Voltage
- 9 to 52 V
- Current
- 3 mA
