PZM30 D
$479.00
0.0 (0)
Write a review
PZM30 D Hemispherical polar pattern - Image

Hemispherical polar pattern

For intelligible pickup of sound from any direction

PZM30 D PZM® (Pressure Zone Microphone®) technology - Image

PZM® (Pressure Zone Microphone®) technology

Prevents sound coloration from surface reflections

PZM30 D Switchable dual-frequency response - Image

Switchable dual-frequency response

For greater flexibility in mic placement and sonic character

Features

PZM30 D Rugged, low-profile housing - Image

Rugged, low-profile housing

Withstands the rigors of the stage

PZM30 D Detachable cable - Image

Detachable cable

Easy to install and service

Specs & Downloads

Item# 3323H00010

Description

Livin´ on the edge

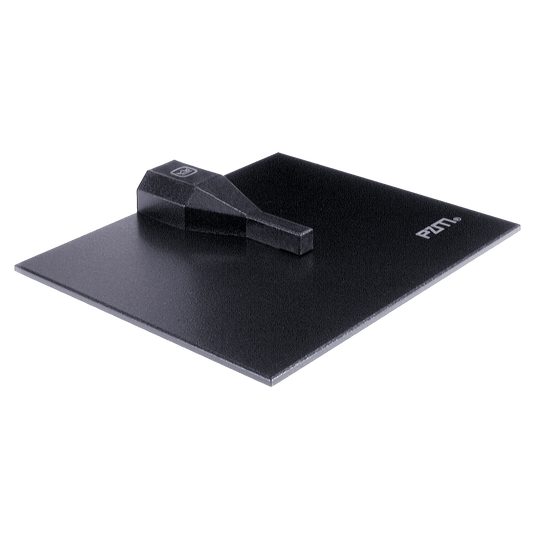

The PZM30 D high-performance hemispherical boundary layer microphone is a Pressure Zone Microphone® designed for professional recording, sound reinforcement and broadcasting. The capsule is mounted in the “pressure zone”, an area where direct sound and reflected sound are in phase, which provides a 6dB higher sensitivity. Two selectable frequency responses (flat/rising) provide greater flexibility in mic placement and sonic character. The rising position of the frequency switch adds brilliance and a crisp attack on percussion, drums, or piano. The PZM30 D comes in a very rugged, low-profile, metal housing with detachable cable that makes it sturdy and reliable for heavy duty applications.

General Specifications

Audio frequency bandwidth
20 - 20000 Hz
Sensitivity
7 mV/Pa
Signal to Noise
74 dB-A

Dimensions

Length
152 mm
Width
127 mm
Height
19 mm

Design

Finish
black

Audio Output

Type
Balanced XLR
Gender
Male
Contacts
3-pin

Powering Interface

Voltage
12 to 48 V

Application

Sound Reinforcement

Retail

Device

Boundary Layer Microphone
