25 – 200 watts suggested amplifier power range
JBL engineers have designed the Studio 580 floorstanding loudspeaker to deliver robust, enveloping sound from a compatible AVR (audio/video receiver) or 25- to 200-watt power amplifier, whether you are using the Studio 580 as a stand-alone unit or as part of a surround-sound system.
Dual 6-1/2" (165mm) ribbed PolyPlas woofer cones
Powerful bass affects more than just your ears. It resonates through your entire body, creating a soundscape that you can feel as well as hear. The JBL Studio 580 floorstanding loudspeaker delivers accurate low-frequency sounds from a pair of 6-1/2-inch (165-millimeter) ribbed PolyPlas woofers. The ribs improve strength while reducing distortion. The result is rich, powerful, articulate bass.
Symmetrical Field Geometry (SFG) magnet assembly
Thanks to a heavy-duty magnet Symmetrical Field Geometry (SFG) assembly, the JBL Studio 580 floorstanding loudspeaker’s pair of low-frequency woofers delivers highly focused bass. The result is pristine, articulate sound that create an added sense of ambience.
1" (25mm) high-frequency compression driver
The JBL Studio 580 floorstanding loudspeaker’s high-frequency compression driver lowers distortion and provides a wider dynamic range than is possible from conventional high-frequency and midrange drivers. The tweeter comprises a one-piece Teonex® diaphragm/surround assembly fitted with a 1-inch (25-millimeter) voice coil that can deliver enhanced vocal articulation.
Glass-filled ABS Bi-Radial high-frequency horn
Horn-shaped loudspeaker designs optimize high-frequency output by directing the sound to the listener with pinpoint accuracy, thereby eliminating reverberation, reflections off walls, and other artifacts. The Studio 580 floorstanding loudspeaker features a glass-filled ABS Bi-Radial high-frequency horn that delivers professional-level sound to your home.
Low-loss, two-way crossover network
The Studio 580 floorstanding loudspeaker’s low-loss, two-way crossover network ensures a clean transition for sound coming from individual low-frequency and high-frequency drivers, thereby reducing distortion while improving clarity.
The Studio 580 floorstanding loudspeaker will work with multiple power amplifiers or connection setups – or both – for single-wire or bi-wire operation. The result is enhanced versatility in the ways you can use the Studio 580 speaker.
Sturdy 3/4" (19mm) MDF enclosure
The Studio 580 floorstanding loudspeaker’s cabinet is built with the same attention to perfection as every other component. Rigid, heavily braced materials prevent unwanted resonances, while non-parallel surfaces eliminate sound interference.
The same attention to detail that went into the Studio 580 floorstanding loudspeaker’s technical design was paid to creating a powerful, sophisticated look that will fit within even the most discerning householder’s décor. The Studio 580 is available in a black or cherry finish.
Frequently Bought Together
Acoustically accurate floorstanding loudspeaker.

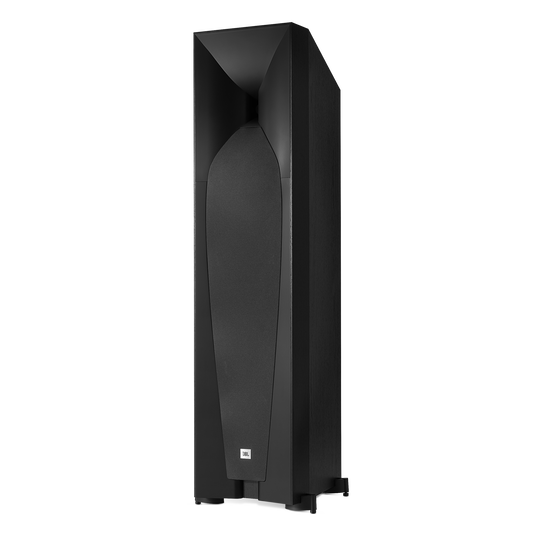

The JBL® Studio 580 floorstanding loudspeaker brings professional-quality sound to the home experience. The Studio 580 uses the technology developed for JBL pro-audio loudspeakers to deliver accurate and powerful sound to your living room. The Studio 580 speaker is a perfect complement to other members of the Studio 5 Series, including the Studio 530 bookshelf and the Studio 520C center-channel loudspeakers. The Studio 580 features a 1-inch (25-millimeter) tweeter mounted on a glass-filled Bi-Radial® horn – the technology used in JBL concert sound systems – to deliver concise, sustained high frequencies. A pair of 6-1/2-inch (165-millimeter) PolyPlas™ cones with Symmetrical Field Geometry™ (SFG) magnet assemblies handle low frequencies.
- Two-way dual-woofer, floorstanding
- Nominal Impedance
- 6 ohms
- (2.83V@1m) 90dB
- Crossover Frequencies
- Frequency Response
- (-6dB) 40Hz-40kHz
- Depth (mm)
- Weight (lb)
- Width ( in)
- Weight (kg)
- Height (mm)
- Height (in)
- Depth (in)
- Width (mm)
Control and Connection Specifications
- Connector Type
- Dual gold-plated binding posts (bi-wire capable)
What's in The Box?
- 1 Studio 580 floorstanding loudspeaker
- 1 horn cover
- 1 port tube insert
- 4 metal spikes
- Owner’s manual
