25 – 125 watts suggested amplifier power range

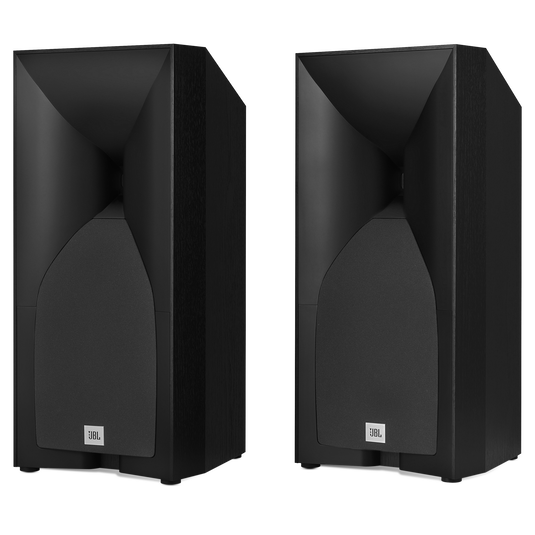

JBL engineers have designed the Studio 530 bookshelf loudspeaker to deliver robust sound from a compatible AVR (audio/video receiver) or 25- to 125-watt power amplifier, whether you are using it as a stand-alone unit or as part of a surround-sound system.
5-1/4" (130mm) ribbed PolyPlas woofer cone
Powerful bass affects more than just your ears. It resonates through your entire body, creating a soundscape that you can feel as well as hear. The JBL Studio 530 bookshelf loudspeaker delivers accurate low-frequency sounds from a 4-inch (100-millimeter) ribbed PolyPlas woofer. The ribs improve strength, while reducing distortion. The result is rich, articulate bass.
Symmetrical Field Geometry (SFG) magnet assembly
Thanks to a heavy-duty Symmetrical Field Geometry (SFG) magnet assembly, the Studio 530 bookshelf loudspeaker’s low-frequency woofer delivers highly focused bass. The result is pristine, articulate sound.
1" (25mm) high-frequency compression driver
The JBL Studio 530 bookshelf loudspeaker’s high-frequency compression driver lowers distortion and provides a wider dynamic range than is possible from conventional high-frequency and midrange drivers. The tweeter comprises a one-piece Teonex® diaphragm/surround assembly fitted with a 1-inch (25-millimeter) voice coil that can deliver enhanced vocal articulation.

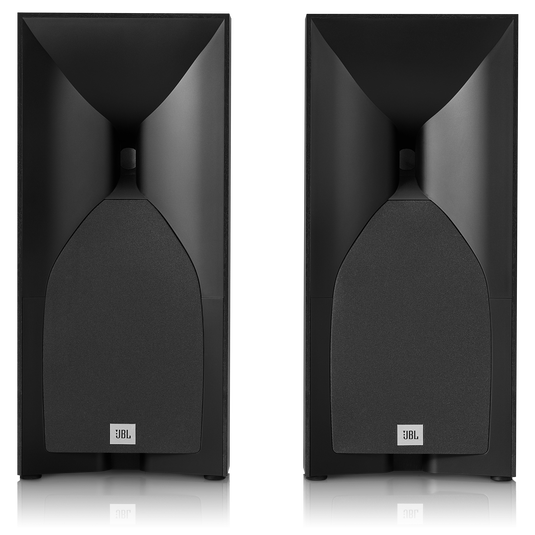

Glass-filled ABS Bi-Radial high-frequency horn
Horn-shaped loudspeaker designs optimize high-frequency output by directing the sound to the listener with pinpoint accuracy, thereby eliminating reverberations, sound reflections off walls, and other artifacts. The Studio 530 bookshelf loudspeaker features a glass-filled ABS Bi-Radial high-frequency horn that delivers professional-level sound to your home.
Low-loss, two-way crossover network
The Studio 530 bookshelf loudspeaker’s low-loss, two-way crossover network ensures a clean transition for sound coming from individual low- and high-frequency drivers, thereby reducing distortion while improving clarity.
The Studio 530 bookshelf loudspeaker will work with multiple power amplifiers or connection setups – or both – for single-wire or bi-wire operation. The result is enhanced versatility in the way you can use the Studio 530 speaker.
Sturdy 3/4" (19mm) MDF enclosure
The Studio 530 bookshelf loudspeaker’s cabinet is built with the same attention-to-sound-perfection as every other component. Rigid, heavily braced materials prevent unwanted resonance, while non-parallel surfaces eliminate sound interference.
The same attention to detail that went into the Studio 530 bookshelf loudspeaker’s technical design was paid to creating a powerful, sophisticated look that will fit within even the most discerning householder’s décor. The Studio 530 is available in a black or cherry finish.
Frequently Bought Together
Professional technology in a bookshelf loudspeaker.
The JBL® Studio 530 bookshelf loudspeaker brings professional-quality sound to the home experience. The Studio 530 takes the technology that JBL engineers developed for pro-audio loudspeakers and uses it to deliver accurate and powerful sound to your living room. And it’s versatile: the Studio 530 can replay a left-channel signal, a right-channel signal or surround-sound channels. The Studio 530 features a 1-inch (25-millimeter) tweeter mounted on a glass-filled Bi-Radial® horn – the technology that JBL concert-sound systems use – to deliver concise, sustained high frequencies. A 5-1/4-inch (130-millimeter) PolyPlas™ cone with a Symmetrical Field Geometry™ (SFG) magnet assembly handles low frequencies.
- Two-way bookshelf
- Nominal Impedance
- 6 ohms
- Frequency Response
- (-6dB) 45Hz-40kHz
- (2.83V@1m) 86dB
- Crossover Frequencies
- Depth (in)
- Weight (lb)
- Width ( in)
- Depth (mm)
- Height (in)
- Width (mm)
- Height (mm)
- Weight (kg)
Control and Connection Specifications
- Connector Type

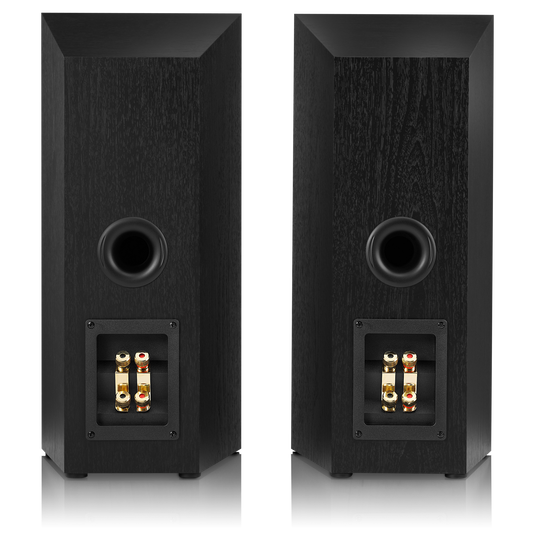

- Dual gold-plated binding posts (bi-wire capable)
What's in The Box?
- 2 Studio 530 bookshelf loudspeakers
- 2 horn covers
- 2 port tube inserts
- 2 cards with adhesive rubber feet
- Owner’s manual
