ZonePro 1261m
$1,019.00

Features

ZonePro 1261m 6 Balanced Mic/Line Inputs, 4 Unbalanced, Mono-Summed RCA Input Pairs, S/PDIF Input - Image

6 Balanced Mic/Line Inputs, 4 Unbalanced, Mono-Summed RCA Input Pairs, S/PDIF Input

ZonePro 1261m Microphone Gain per Channel - Image

Microphone Gain per Channel

ZonePro 1261m Pre-Configured Architecture - Image

Pre-Configured Architecture

ZonePro 1261m Two Configurable Input Insert Positions, and One Configurable Output Insert Position - Image

Two Configurable Input Insert Positions, and One Configurable Output Insert Position

ZonePro 1261m AutoWarmth® per Output Zone - Image

AutoWarmth® per Output Zone

ZonePro 1261m Link Bus - Image

Link Bus

ZonePro 1261m Optional ZC Controllers - Image

Optional ZC Controllers

ZonePro 1261m Ethernet Control, Serial Control, and Third Party Control - Image

Ethernet Control, Serial Control, and Third Party Control

ZonePro 1261m Wizard-Driven Configuration - Image

Wizard-Driven Configuration

Specs & Downloads

Item# DBX1261MV

Description

12x6 Digital Zone Processor

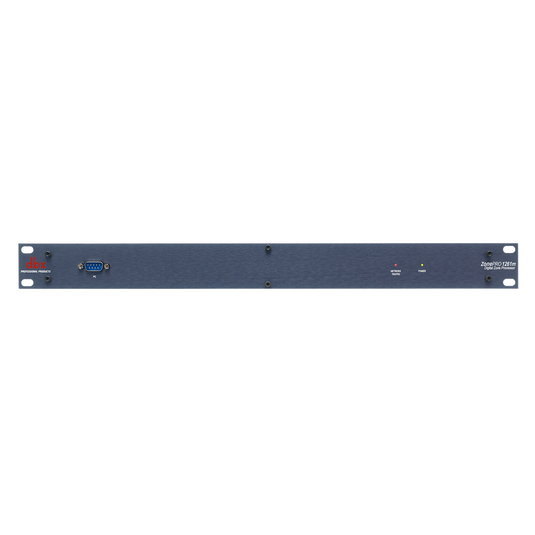

The ZonePRO 1261m offers fixed I/O, pre-configured architecture, configurable insert processing and optional duplication of audio channels to another ZonePRO device via a link bus. The 1261m features a total of 12 inputs and six outputs. Inputs include six balanced mic/line switchable terminal block inputs, four mono-summed pairs of unbalanced RCA inputs and one S/PDIF input for up to two digital channels. Hardware-controlled microphone gain allows adjustment of microphone gain per channel. The 1261m device has a pre-configured architecture with input processing, a central matrix and output processing. Two input insert positions and one output insert position allow channel-specific insert processing to be configured. AutoWarmth®, a psychoacoustic function that maintains full frequency bandwidth even when the signal level has dropped, is permanently available on each output zone. A link bus allows duplication of the first six audio channels to another ZonePRO device in applications where additional output zones are required. The front panel of the 1261m features a power status LED, a network traffic LED, and an RS-232 control port. Additional system control is offered in the form of optional Zone Controllers. This collection of hardware wall-controllers represents a series of simple, elegant user interfaces for functions such as volume, source and preset control. All ZonePRO devices can be controlled by third party control systems via RS-232 or Ethernet as applicable. ZonePRO Designer—the configuration, control and monitoring software for the ZonePRO family of devices—offers control of the ZonePRO 1261m via Ethernet or RS-232. The Configuration Wizard within ZonePRO Designer guides users through the step-bystep configuration process of the 1261m.

General Specifications

Input

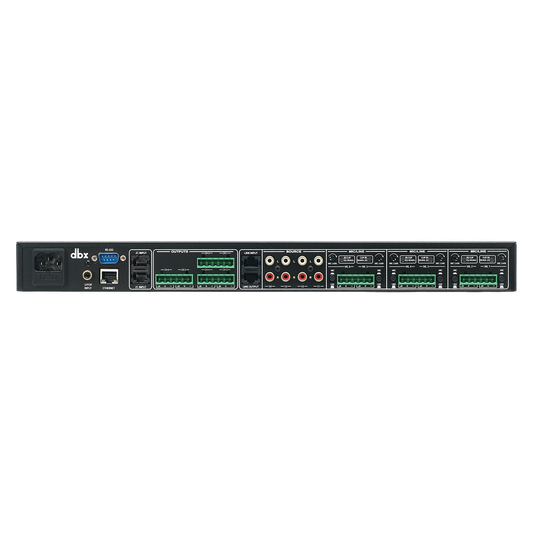

12 Total - (6) Balanced Mic/Line Inputs, (4) Unbalanced, Mono-Summed RCA Input Pairs, S/PDIF Input
Input Type
Euroblock (Mic/Line), RCA (Source)
Input Impedance Euroblock
>50kΩ Balanced, >25kΩ Unbalanced, RF Filtered
Input Impedance RCA
>25kΩ Unbalanced, RF Filtered
Max Input
+20dBu Mic/Line, +12dBu RCA
CMRR
> 40dB, typically >55db @ 1kHz
Mic Preamp gain
30 to 60dB
Mic Preamp Equivalent Input Noise (EIN)
< -118dBu, 22Hz-22kHz, 150Ω Source Impedance
Mic Preamp Phantom Power
15V
Output
6 Total
Output Type
Electronically Balanced, RF Filtered Euroblock
Output Impedance
120Ω Balanced, 60Ω Unbalanced
Max Output
+20dBu
A/D Converter
dbx Type IV™ Conversion System
A/D Dynamic Range (line)
>113dB, A-weighted, >110dB unweighted
Type IV Dynamic Range
>119dB, A-weighted, 22kHz; BW
Sample Rate
48kHz
D/A Dynamic Range
112dB A-weighted, 109dB unweighted, 22kHz BW
Dynamic Range
>110dB A-weighted, >107dB unweighted, 22kHz BW
THD+Noise
0.003% typical at +4dBu, 1kHz, 0dB gain
Frequency Response
20Hz – 20kHz, +/- 0.5dB
Interchannel Crosstalk
>80dB typical
Propagation Delay
0.8 msec
Operating Voltage
100-240 VAC, 50/60Hz
Power Consumption
27 W
BTU
<92.13
Safety Agency Certifications
UL 60065, IEC 60065, E 60065, EN 55013

Dimensions

Unit Weight
6.2 lbs / 2.81 kg
Shipping Weight
8.35 lbs / 3.78 kg
Dimensions
1.75” (1U) x 19” x 7.75” (45mm x 483mm x 197mm)
