Di1
$139.00

Works with HARMAN Connected PA™

Works seemlessly with HARMAN Connected PA™—the first integrated PA system that automatically identifies and configures your connected equipment with a single app.

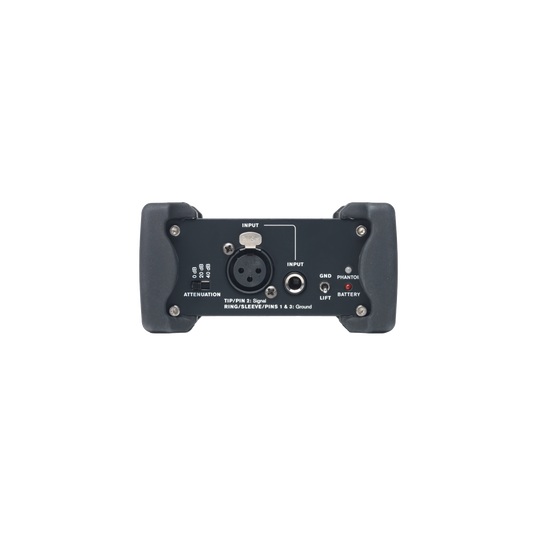

Attenuation switch

The attenuation switch allows an incoming source signal to be attenuated by 20 dB or 40 dB. This is useful for operation with very hot signals that would otherwise overload the di1.

Ground lift switch

This is useful for helping to eliminate ground loop hum problems that can arise between connected devices.

Features

Specs & Downloads

Item# DBXDI1

Description

No noise. All tone.

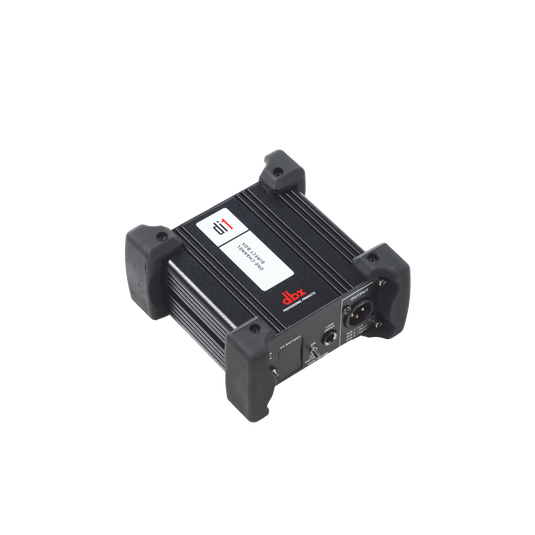

The dbx Di1 is a compact high-quality active direct injection box. Ideal for both studios and on the road, the Di1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise. Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone. Built for toughness and reliability, the Di1 has all the features of a fully featured gig-ready workhorse DI unit. dbx Di1 is the ideal direct box for musicians who want to spend less time setting up and more time focusing on their music. Unlike ordinary direct boxes, the Di1 has embedded HARMAN ioSYS technology which enables it to automatically recognize and configure with the HARMAN Connected PA app and system of products, to take the guesswork out of setting up and getting consistently great sound. Current products with embedded ioSYS technology and HARMAN Connected PA compatibility include the Soundcraft Ui-series mixers, JBL PRX800 loudspeakers, dbx Di1 direct boxes, and AKG P5i microphones and the MDAi dynamic microphone adapter.

General Specifications

Input Impedance
> 250k Ohm
Max Input
+12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
Connectors
Two Parallel 1/4" jack connectors and a parallel XLR connector (unbalanced), 1/4" Jack
Output Impedance
> 600 Ohms

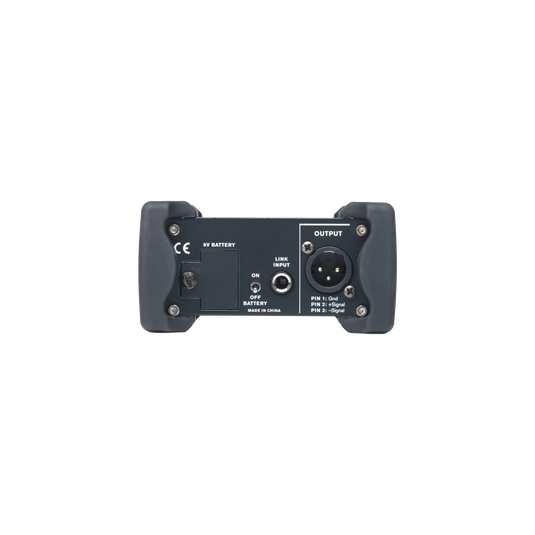

Output Connectors
XLR balanced
Distortion
(THD) < 0.005% at 1kHz, 0dBu
Output Noise
<-100dB unweighted
Frequency Response
10Hz to 70kHz, +0dB/-3dB
Main/Standby
9 Volt battery
Phantom Power
+18 Volts DC to +48 Volts DC

Dimensions

Width
3.93 in (10 cm)
Length
4.01 in (10.2 cm)
Height
1.77" (4.5 cm)
