DJdi
$69.00

Features

Specs & Downloads

Item# DBXDJDI

Description

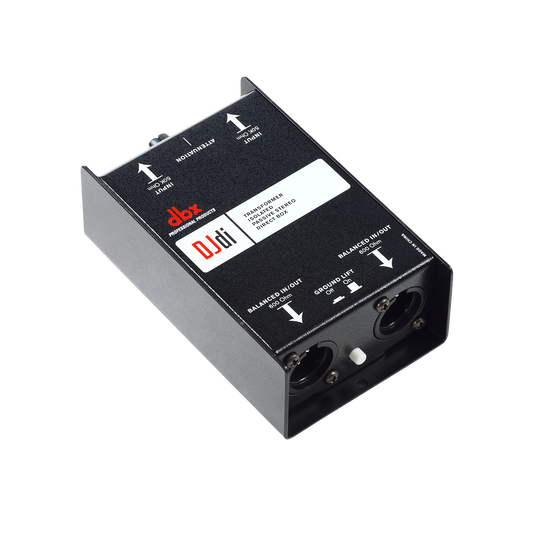

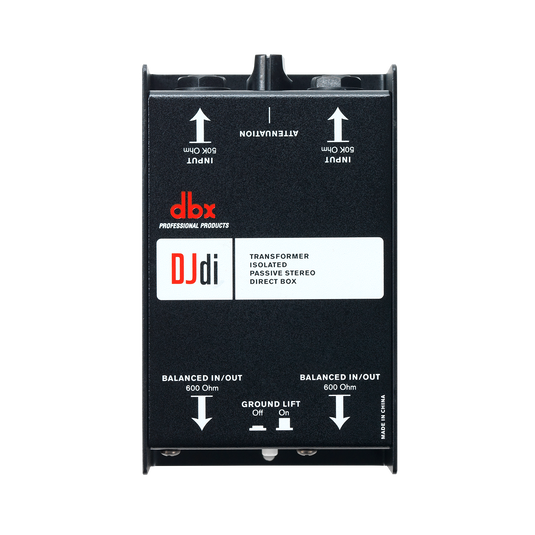

2-channel Passive Direct Box

The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.

General Specifications

Circuit
Passive
Inputs
2
Input Connectors
1/4” TS (Tip Hot, Sleeve Ground)
Input Type
Unbalanced, RF Filtered
Input Impedance
50 kOhm
Outputs
2
Output Connectors

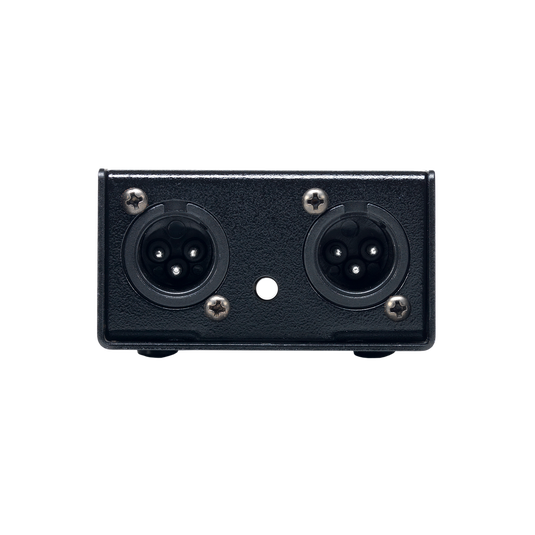

Male XLR, Balanced, Pin 2 hot
Output Impedance
600 Ohms
Noise Level
-104dBu (22Hz -22kHz, Input Shorted)
THD+N (10Hz-22kHz)
0.23% typical @ +4dBu @ 1kHz
Insertion Loss
21dB typical
