dbx

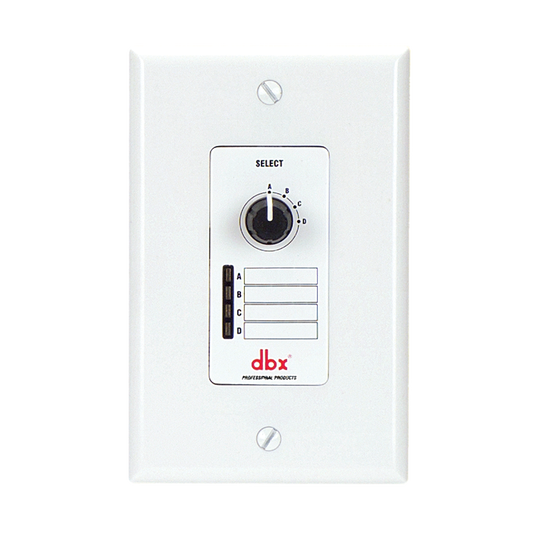

ZC-3

Details
Item# DBXZC3V
Variations
  • Select Color
    • White
Product Actions
Add to cart options
$59.0059.0 each
Promotions
Availability:

In Stock

UPS-BOX Order by 45 hrs 24 mins with 2 Day Shipping and receive by Wed, Sep 26
Your zip code 20149 edit | Want it faster?

Additional Information
The ZC-3 can function as a program selector for the DriveRack 260 and 220i; in addition it can be used for as a source selector, page steering control, or a scene selector for the ZonePRO products.
The Zone Controllers offer extended utility to the DriveRackĀ® and ZonePROā„¢ families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor. The ZC-3 can function as a program selector for the DriveRack 260 and 220i; in addition it can be used for as a source selector, page steering control, or a scene selector for the ZonePRO products.
Manuals & Downloads:
General Specifications:
Connectors
(2) RJ-45
Series Wiring
Maximum Cable Length varies with number of Zone Controllers. For Example, Three Zone Controllers = 600 ft. Six Zone Controllers = 300 ft.
Parallel Wiring using ZC-BOB
Up to Six Zone Controllers = 1000 ft.
Parallel Wiring Cable
CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
Safety Agency Certifications
UL 60065, IEC 60065, EN 55013, E60065
