Item# LEXPCM96SUR-DFX
Description

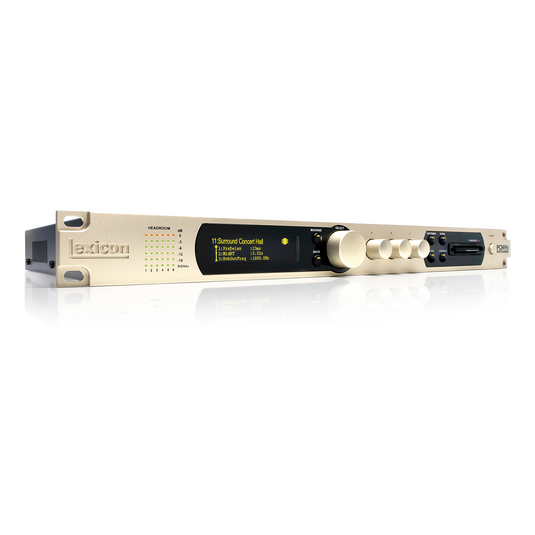

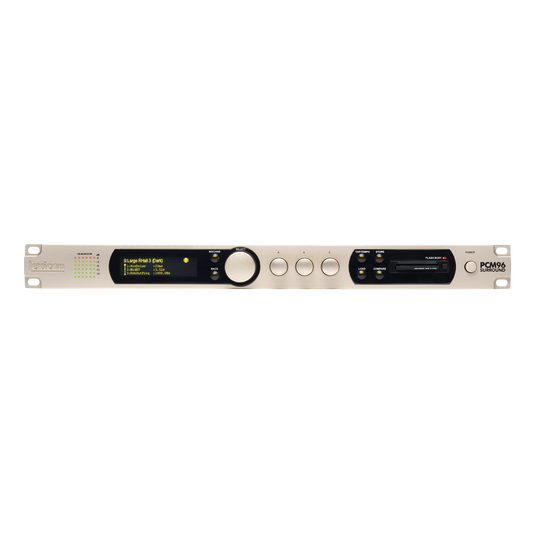

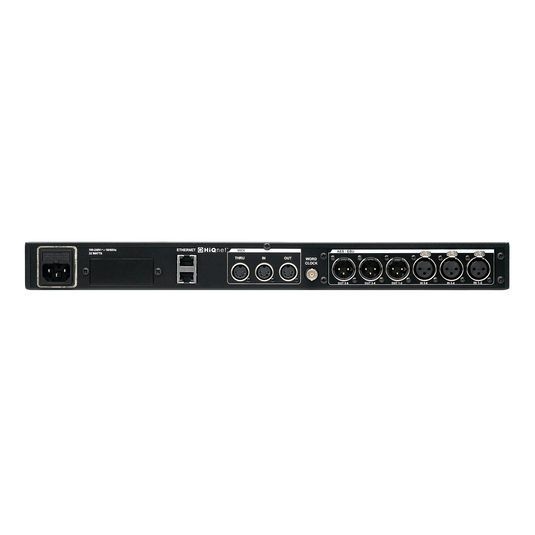

PCM96 Surround (digital)
Building on the success of the PCM96, the new PCM96 Surround offers more presets, more configuration options, and more inputs and outputs. The PCM96 Surround gives you industry standard reverbs and effects, with tremendous flexibility. The PCM96 Surround is availble with either 6 XLR Stereo AES inputs and outputs, or 2 DB25 6-channel analog I/O and 1 DB25 6-channel digital I/O. Both versions also feature MIDI, and Wordclock.
General Specifications
- Internal Sample Rates
- Internal 44.1kHz/48kHz/88.2kHz/96kHz
- Accuracy
- within ±50ppm
- External Sample Rates
- 44.1kHz/48kHz/88.2kHz/96kHz
- Lock Range
- ±2% of nominal
- TTL Word Clock Input
- 75 Ohm, BNC, externally terminated to allow cascade
- MIDI
- In/Out/Thru
- Storage Media
- Type I Compact Flash Can hold up to 2048 user presets
- Internal Storage
- Internal non-volatile Flash. Can hold 1024 user presets.
- Power Requirements
- 100-120 / 220-240 VAC ; 50-60Hz, 26W max
- Connector
- 3-pin IEC
Audio Specifications
- Analog Input Connectors
- Three XLR AES female connectors
- Analog Input Impedance
- 20K Ohm, balanced
- Analog Input Level (for 0dBFS)
- +4dBu mode +20dBu ; –10dBV mode 8.2dBu
- Analog Input Freq Response @96K
- 20Hz - 22kHz, ±.15dB ; 20Hz - 46kHz ±.5dB
- A/D Conversion
- 24 bits
- A/D Dyn Range
- 112dB unweighted, 115dB A-weighted
- Analog Input THD
- <0.002% 20 → 20kHz @ +4dBu
- Analog Input Crosstalk @ 1Khz
- <–75dB at 20 → 20k with a +20dBu input signal
- Analog Output Connectors
- Three XLR AES male connectors
- Analog Output Impedance
- 30 Ohm, electronically balanced
- Analog Output Level (at 0dBFS)
- +4dBu mode +20dBu ; –10dBV mode 8.2dBu
- Analog Output Freq Response @96K
- 20Hz - 22kHz, ±.15dB ; 20Hz - 46kHz ±.5dB
- D/A Conversion
- 24 bits
- D/A Dyn Range
- 112dB unweighted, 115dB A-weighted
- Analog Output THD
- <0.002% 20Hz - 20kHz at +4dBu
- Analog Output Crosstalk @ 1kHz
- <–75dB at 20Hz - 20kHz with a +20dBu input signal
- Format
- AES/EBU
- Word Size
- 24 bits
Dimensions
- Height
- 1.75 in (4.45 cm)
- Width
- 19 in (48.26 cm)
- Depth
- 16 in (31.75 cm)
- Weight
- 14.25 lbs
