Reference RC263
$499.95
4.7 (27)
Write a review

Features

Reference RC263 Center channel loudspeaker ideally suited for music and home theater systems - Image

Center channel loudspeaker ideally suited for music and home theater systems

The RC263’s slender profile allows for flexible placement within your entertainment system. It is sonically matched to companion Reference Series floorstanding, bookshelf and surround loudspeakers and powered subwoofers allowing you to create the ideal system solution for your needs.

Reference RC263 1" (25mm) CMMD™ tweeter with advanced waveguide - Image

1" (25mm) CMMD™ tweeter with advanced waveguide

The combination of the acoustical science and patented designs found in the 1" (25mm) CMMD™ (Ceramic Metal Matrix Diaphragm) tweeter and advanced waveguide provides seamless sonic integration with the CMMD™ midrange while providing excellent high-frequency detail and smooth coverage across a wide listening area.

Reference RC263 4" (100mm) CMMD™ flat-piston midrange with dedicated sub-enclosure - Image

4" (100mm) CMMD™ flat-piston midrange with dedicated sub-enclosure

The flat-piston design reduces critical high- and mid-frequency diffraction found in traditional conetype midrange drivers. This helps to improve the integration with tweeter and woofers and provides better balanced sound across the entire frequency range. The dedicated sub-enclosure prevents harmful interaction with the woofers inside the cabinet and allows the midrange to remain crystal clear at all times.

Reference RC263 Dual 6.5" (165mm) CMMD™ high-output woofers with sealed enclosure - Image

Dual 6.5" (165mm) CMMD™ high-output woofers with sealed enclosure

Powerful bass is key to a high-quality sound experience and the strength of Infinity’s extremely rigid woofer cones – constructed from CMMD™ (Ceramic Metal Matrix Diaphragm) – help to deliver a wide frequency range with minimal distortion. These woofers work in conjunction with the sealed enclosure to provide powerful deep bass that makes your music and movies come alive.

Reference RC263 Computer-optimized driver positioning and network integration - Image

Computer-optimized driver positioning and network integration

Infinity’s advanced acoustical modeling design places the drivers in the ideal location within the cabinet allowing them to work with the enclosure and not against it. The advanced positioning and crossover network integration reduce harmful sonic artifacts that would otherwise detract from the overall performance of the loudspeaker. The end result is balanced, accurate sound with lifelike imaging and soundstage that brings the musical performance right into your home.

Reference RC263 Sleek, contemporary enclosure design - Image

Sleek, contemporary enclosure design

The slim profile of the RC263 is complemented with a rich, black woodgrain finish and hidden fasteners that provide for a clean look that blends easily with any décor

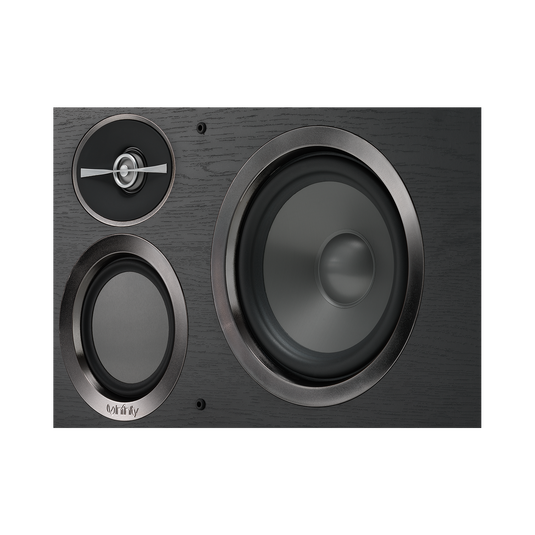

Reference RC263 Elegant design details - Image

Elegant design details

The waveguide, midrange and woofers feature black chrome trim rings while the waveguide surface is finished with a rich, soft-touch paint. The silver phase ring highlights the CMMD™ tweeter mated to the waveguide.

Reference RC263 Designed and engineered in Northridge, California - Image

Designed and engineered in Northridge, California

Infinity loudspeakers are designed and engineered in Northridge, California at our world-renowned Acoustic Engineering Center of Excellence. Every new product is evaluated and scrutinized against the competition and our own stringent standards to ensure that its acoustic performance is best-in-class

Specs & Downloads

Item# RC263BK

Description

As the larger center channel model in the Reference Series, the RC263 is distinctive for its 3-way design. The heart of this center channel speaker is the 1" (25mm) CMMD™ high-frequency driver mated to our advanced waveguide. This combination provides seamless integration with the midrange and smooth coverage across a wide listening area. A 4" (100mm) flat-piston CMMD™ midrange with a dedicated sub-enclosure provides superior vocal and dialogue intelligibility. Dual 6.5" (165mm) CMMD™ woofers work in conjunction with the sealed enclosure to provide powerful, deep bass response that will make your music and movies come alive. The RC263’s slender design and elegant details provide a rich appearance that blends well with any décor.

General Specifications

Recommended Amplifier Power
20–200 Watts
Nominal Impedance
6 Ohms
Height (in)
9-1/16
Height (mm)
230
Width (in)
25-3/16
Width (mm)
639
Depth (in)
10-5/8
Depth (mm)
270
Weight (lbs)
29.4
Weight (kg)
13.3

Audio Specifications

Frequency Response
52Hz–22kHz
Sensitivity
89dB

Documents & Downloads
