• New
JBL

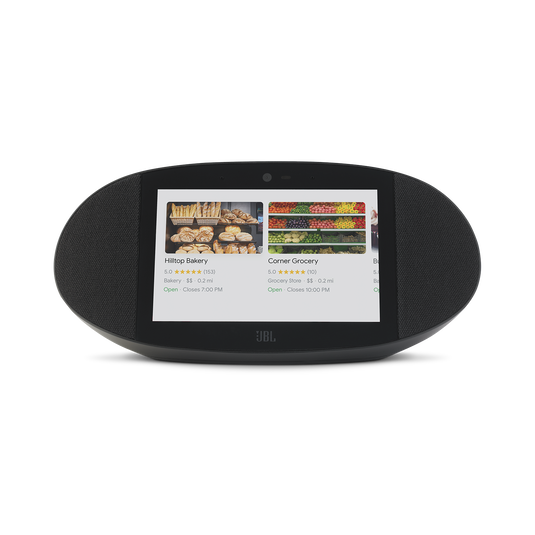

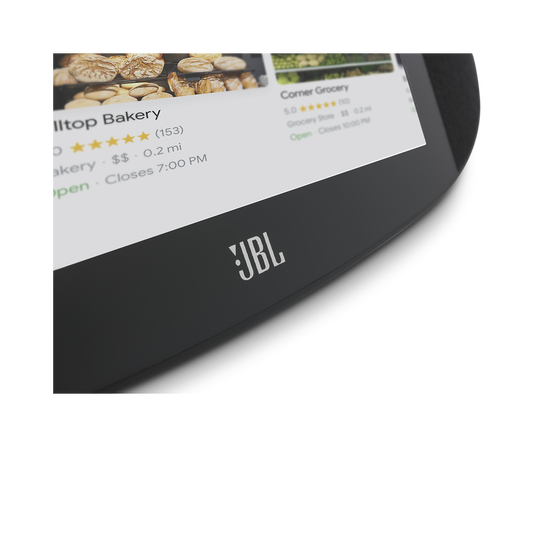

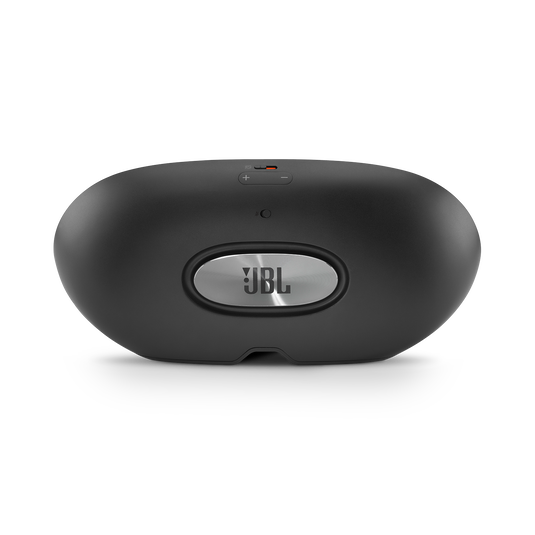

JBL LINK VIEW

Details
Item# JBLLINKVIEWBLKAM
Variations
  • Select Color
    • Black
Product Actions
Add to cart options
$249.95249.95 each
Promotions
Free Ground Shipping On This Item
Availability:

In Stock

UPS-BOX Order by 38 hrs 00 mins with 2 Day Shipping and receive by Wed, Jan 23
Your zip code 20149 edit | Want it faster?

General Specifications

Transducer 2 x 51mm (2”) full range driver
Output power 2 x 10W RMS
5MP front facing camera Yes
8” HD touch screen Yes
2.4G Wi-Fi transmitter frequency range 2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi transmitter power <20dBm (EIRP)
2.4G Wi-Fi modulation OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM
5G Wi-Fi transmitter power <20dBm (EIRP)
5G Wi-Fi modulation OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM, 256QAM
5G Wi-Fi transmitter frequency range 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz
Gross Weight 1.9kg
Net Weight 1.3kg
Note The integrated display of the JBL Link View allows you to get things done easily. According to the definition of networked equipment with high network availability functionality set out in commission regulation (EU) No 801/2013 amending Regulation (EC) No 1275/2008, the product is considered as a networked equipment with functionality of videophone. Therefore, JBL Link View exempts from the requirements for availability of standby/off modes, power management function and possibility of deactivating wireless network connections, if these requirements are found, it will be inappropriate for the intended use of the product. JBL Link View is in compliance with the European Union energy legislation. JBL Link View is in active standby mode once the device is plugged into a wall socket.
Active standby consumption <4.3 Watts.
Trademark Google is a trademark of Google LLC.

Audio Specifications

Frequency response 60Hz-20kHz (-6dB)
Signal-to-noise ratio >80dBA

Dimensions

Dimensions (W x H x D) 332 x 152 x 100mm

Control and Connection Specifications

Bluetooth version 4.2
Bluetooth transmitter frequency range 2402 – 2480MHz
Bluetooth transmitter power ≤10dBm (EIRP)
Bluetooth transmitter modulation GFSK, π/4 DQPSK, 8DPSK
Wireless network 802.11b/g/n/ac (2.4GHz/5GHz)

Powering Input

Power Supply 100-240V~50/60Hz
  • 1 x JBL LINK VIEW
  • 1 x Power cable
  • 1 x Quick start guide
  • 1 x Warranty card

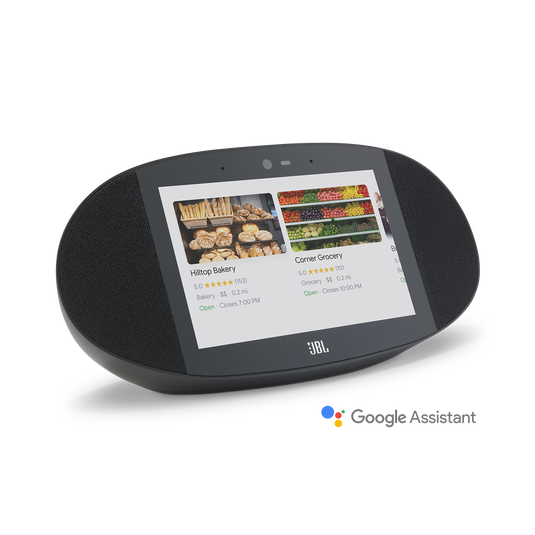

Get more than legendary sound. The integrated display included on JBL LINK VIEW allows you to get things done easily. It also has the Google Assistant built in, you can ask questions and tell it to do things. Just start with “Hey Google” to quickly enjoy your entertainment, stay connected with loved ones, view glanceable answers, manage daily tasks, and control your smart home. Your Assistant can help free up your hands and time, so you can focus on the things that matter most. Like watching videos of your favorite YouTube creators, reliving memories of your latest family vacation, making a video call to your best friend, receiving step-by-step baking instructions for delicious chocolate chip cookies, or dimming the lights for movie night. All this is delivered through a proprietary JBL transducer array, driven by a digital amplifier tuned to deliver full rich bass and crystal clear highs. This amazing combination of the Google Assistant, JBL Audio horsepower and HD display make JBL LINK VIEW a must have for your home or office. Google, Google Photos, Google Duo, YouTube and other related marks are trademarks of Google LLC.

Search Result For ""

JBL LINK VIEW is rated 3.5 out of 5 by 14.
Rated 5 out of 5 by from Love it!!!!! I had a Lenovo Smart Display which was cool, but it was large, white with OK sound quality. I purchased the JBL Link View which is an amazing Smart screen speaker blends in better being black in my kitchen, is splash proof which is a huge plus for any kitchen and doesn’t take too much space in my opinion. The sound of course is much much better than the Lenovo model. This purchase will not disappoint you with its screen quality and sound.
Date published: 2018-09-07
Rated 2 out of 5 by from Terrible purchase It's a great speaker. One of the best bluetooth speakers I've ever owned. However, for this price, you can go buy a much nicer sound system because this is the stupidest "smart" speaker in the entire lineup of every IoT device in the market. Does not connect to Home Group. Does not support "Continuation" voice feature. The Google Home software just seems to be so different and unintuitive from the other Google Homes I have in my house. One positive I will say about this product is that it's very tough because one time I got so frustrated with how dumb this speaker was I punched it straight in the screen, and it's still working perfectly fine.
Date published: 2018-11-07
Rated 5 out of 5 by from Outstanding Sound and a Beautiful Screen I wanted the best possible sound in my Google Assistant, and this is it! The Screen is also really beautiful. I would recommend this to anyone who is looking for great sound in their smart speaker/display!
Date published: 2018-12-20
Rated 4 out of 5 by from Very Good Product - Need update to multiroom audio I bought this a couple days ago and have been very impressed so far. Good sound quality, good display and slimmer footprint than I expected which is great for my kitchen ledge. The only downsides so far have been that it does not yet support multiroom speaker groups (BIG disappointment as JBL web site said it did, but apparently this is coming in a future update by Google) and also if you are putting it on a high shelf the unit has no way to adjust the resting display angle which means my unit was reflecting lights and was shooting duo video of the top of my head. I have propped it up with felt chair tips for now which works, but an adjustable base with multiple angles would be useful.
Date published: 2018-10-30
Rated 3 out of 5 by from Lots of Potential Great sound and love that it has chromecast. i bought this after I had returned my amazon echo show due to its inability to use YouTube. I thought this would be great for my daughters to be able to watch videos through YouTube and it’s something that entertains while cooking. I was happily surprised when I found out it used Chromecast and that I could watch videos casted from my phone and such, but it is very limited. i cannot cast Netflix, which would be nice, I don’t sit in the kitchen long enough to start a movie. I have a subscription to DirecTV Now and I can cast recorded movies and tv shows and it plays just fine. If I try to cast live tv it plays but with no sound. His is the first time I have used google music and it is alright. Usually when I ask the link view to play music it is unpopular music I have never heard. When I ask to play pandora it seems to just add a station rather than play the station I already have. Overall it sounds great, the ability to use Chromecast is awesome, and being able to access YouTube is always a plus, but I don’t know if it was worth the trade from the amazon echo show, especially now that they came out with a newer model. If JBL and google can fix these few things than I think the JBL Link View is a steal!
Date published: 2018-10-01
Rated 2 out of 5 by from Still needs some work The screen and sound is great, the unit still has some short comings -You cannot link it with other JBL link speakers for whole house audio -Spotify, if you have big playlist it will only play the first 100 songs on the playlist on shuffle -The main screen and the sleep screen options are limited to a couple of clocks or photos. Would like to be able have a clock, weather forecast, maybe even the news All in all its OK but would have expected more.
Date published: 2018-11-18
Rated 4 out of 5 by from Better than the Google Home Hub Bought the google Home Hub. Turned the lights off and the display goes completely dark. I planned on using this in the bedroom, but can't because you can't see the clock. Ran across the JBL Link View looking for another option. Best Buy only had one and none on display. I took a chance and brought it home. I plugged it in and turned the lights off. Perfect the clock stays visible in the dark. I then fired up Google Music and my wife says wow that's a huge improvement in sound compared to the other one. Both agreed it's a keeper.
Date published: 2018-10-23
Rated 5 out of 5 by from Nice google device I bought this and love it. On top of my microwave in the kitchen. It is great for looking up recipees, controls my lights and feedback on my calendar. My grand kids love that it play youtube.. Probably need another one for another room just for the grandkids to play on.
Date published: 2018-12-20
  • y_2019, m_1, d_17, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.9
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_14
  • loc_en_US, sid_jbllinkview, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_harmanaudio

does it charge to allow mobility

Asked by: jt66
The Link view doesn't have any battery so it needs to be plugged in at all times for it to work.
Answered by: Mario at Customer service
Date published: 2019-01-14

Why does it not pick up all my Phone contacts, only some.( like about 5)...what am I doing wrong ? How do I get it to recognise my most important contacts ?

Asked by: Hunting Dog
You have to sync your phone's contacts to your Google account, then open up the Google home app, tap on the Link view's settings and turn on 'Personal results'.
Answered by: Mario at Customer service
Date published: 2019-01-11

The brightness for the clock at nighttime is turned all the way down. Is there any way to make it darker or turn it off? It keeps my girlfriend awake and she has to throw a shirt over it because of the glow.

Asked by: garyjbl
We would like to work with you directly to help you with your issue. Please submit a case request at https://www.jbl.com/support-contact.html and the Customer Service Team will be more than happy to assist you.
Answered by: Mario at Customer service
Date published: 2019-01-10

Just bought this and love it, however is there a way for me to connect it to a Bluetooth adapter to play the music through my surround sound? I currently have an aux to Bluetooth adapter in my dennon, but can&rsquo;t get the view to connect to it.&nbsp;

Asked by: Grubb44
The JBL Link view cannot connect to a bluetooth speaker as it's only a bluetooth receiver which phones can connect to it.
Answered by: Mario at Customer service
Date published: 2019-01-07

How do i link jbl link view to jbl link 20 via blue tooth?

Asked by: Ray55
We would like to work with you directly to help you with your issue. Please submit a case request at https://www.jbl.com/support-contact.html and the Customer Service Team will be more than happy to assist you.
Answered by: Mario at Customer service
Date published: 2019-01-07

How do I set up personal photos / ambient mode ?

Asked by: BobK52
Yes can go into the GOOGLE HOME App on your phone, then click on the LINK VIEW on your list of devices. Next, click on the three dots, and then click on Ambient Settings, this is where you can setup any kind of custom slide show you want to.
Answered by: Mario at Customer service
Date published: 2019-01-06

What streaming services are supported? Can this accept LMS (logitech media server) streams?

Asked by: Ihab
The list of Media services it can do is available through the Google home app. You can link/unlink the services through it and command to play it to the Link view.
Answered by: Mario at Customer service
Date published: 2019-01-06

Is JBL planning an update for group audio? This is now available from the google home app, but the Link View does not behave properly, drops from wifi and kills the group audio

Asked by: Ayal
Unfortunately, it cannot be part of a group. This is because the JBL Link View is not considered a &quot;speaker&quot; so it cannot become part of a speaker group. You can only group speakers together. This unit is considered a 'display'.
Answered by: Rhae
Date published: 2018-12-31
