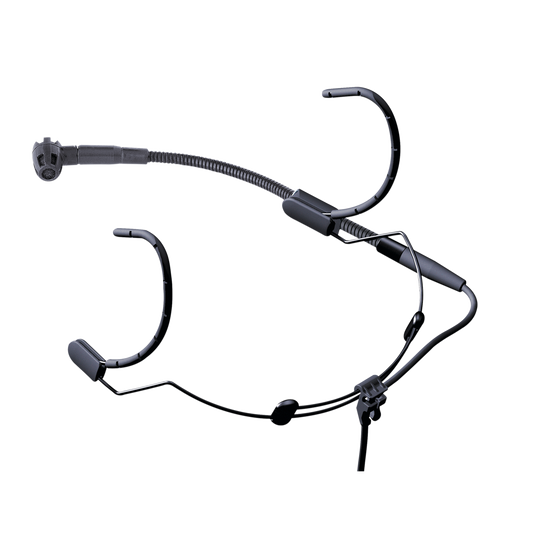

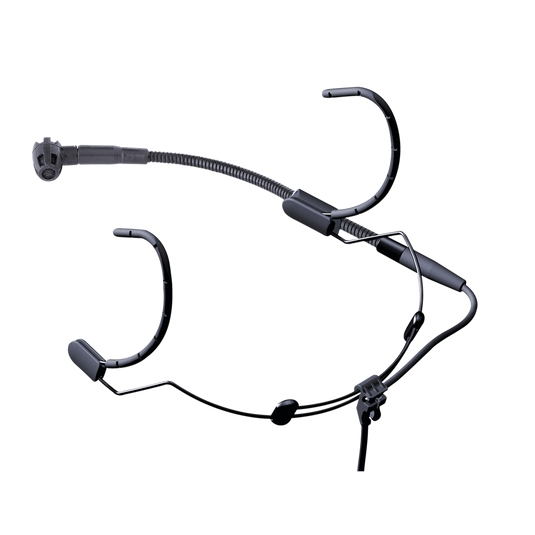

C520

Free your vocals

The C520 professional head-worn condenser microphone with maximum dynamic range for perfect vocal sound. An ideal choice for frontmen, singing keyboardists, drummers, guitarists and dancing performers needing a hands-free microphone. The moisture shield prevents perspiration from penetrating into the transducer element, ensuring a high degree of humidity protection for the microphone. The C520 provides a transducer shock mount to reduce body noise to a minimum. Its cardioid polar pattern effectively rejects unwanted ambient noise. The microphone arm mounts on either the left or the right side of the headband.

General Specifications

Audio frequency bandwidth

60 - 20000 Hz

Equivalent noise level

31 dB-A

Sensitivity

5 mV/Pa

Signal to Noise

63 dB-A

Electrical impedance

200 Ohms

Recommended load impedance

2000 Ohms

Polar Pattern

Cardioid

Dimensions

Length

195 mm

Height

195 mm

Net Weight

26 g

Cable length

3 m (10 ft.)

Design

Finish

matte black

Audio Output

Type

Balanced XLR

Gender

Female

Contacts

3-pin

Powering Interface

Voltage

9 to 52 V

Current

2 mA

Application

Live Vocal

Sports / Fitness

Instrument

Vocals

Device

Headset Microphone

1 x C520 Head-Worn Microphone with standard XLR connector

1 x W44 Windscreen
